Specifications:
Unit Type: Starter; Voltage: 12V; Rotation: CW; Teeth: 9; Starter Type: PMDD.
Package Include:

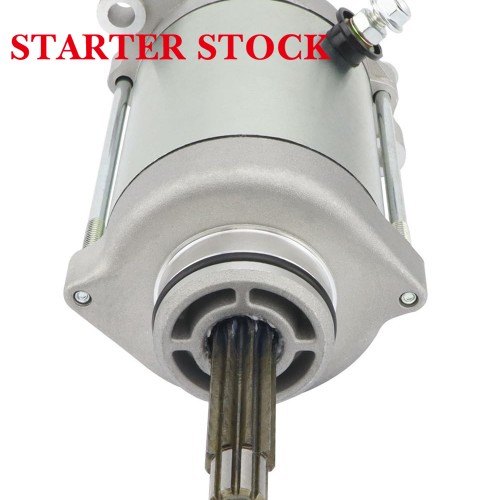

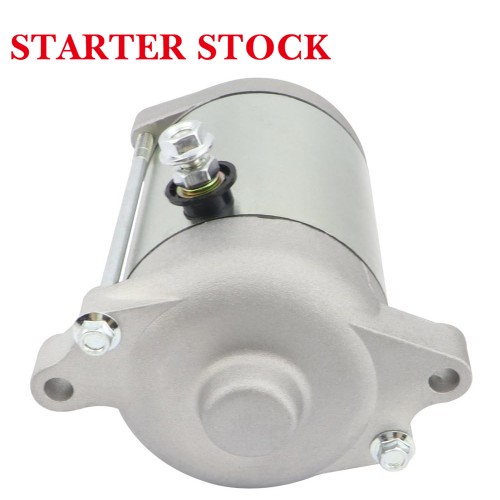

1x Starter Motor

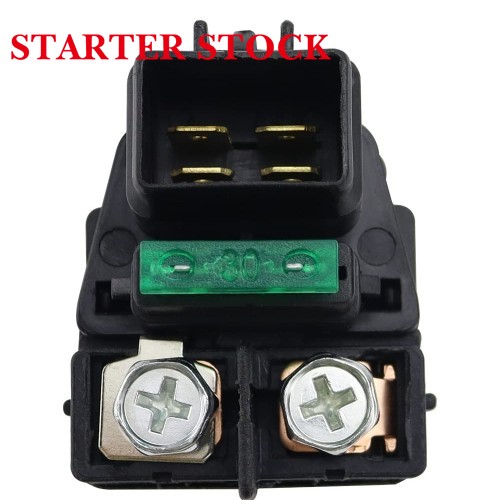

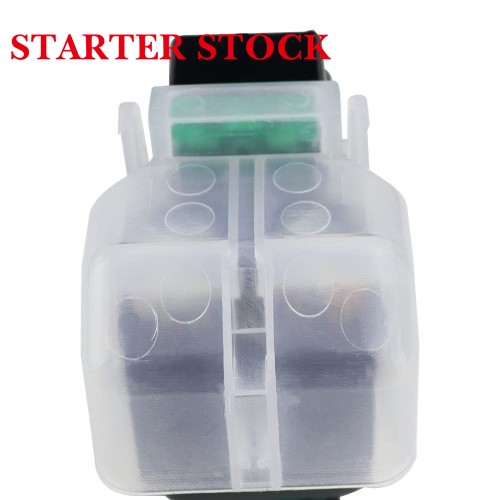

1x Starter Relay
Replacement for Suzuki OE/OEM Part Number: 31100-32E00 31100-32E01
Replacement for Arctic Cat OE/OEM Part Number: 3545-001 3545-014
Interchange Part Number:
Lester: 18790 18865
WAI: 18790N
J & N: 410-54137
Arrowhead: SMU0419
Denso: 128000-9910 128000-9911
Stockers Starters: AC-7N SS-50
Tucker Rocky: 463988 495780 49-5780
Replacement for Suzuki ATV:
QuadRunner 500 4x4 LT-F500F 1998-2002 Model W/X

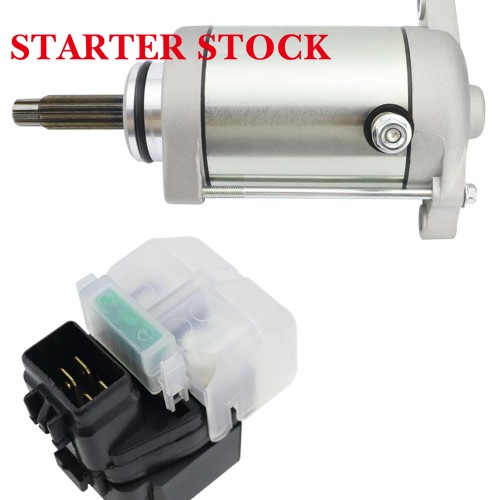

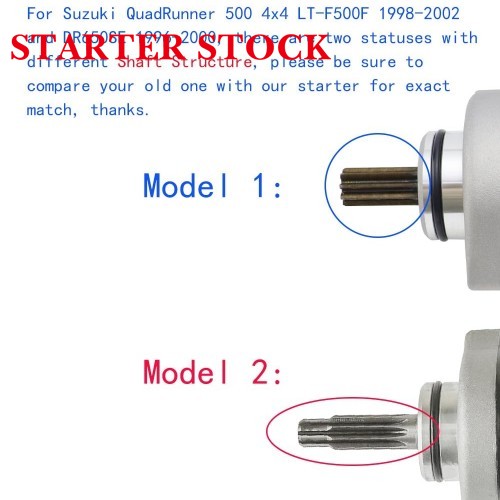

(Note: For QuadRunner 500, there are two starters with different Shaft Structure, another one is Model 1, to check which one will fit your vehicle, please be sure to compare your old one with our starter, the Picture 3 may help.)
Replacement for Suzuki Motorcycle:
DR650SE 2001-2023
DR650SE 1996-2000 Model T/V
(Note: For 96-00, there are two starters with different Shaft Structure, another one is Model 1, to check which one will fit your vehicle, please be sure to compare your old one with our starter, the Picture 3 may help.)
Replacement for Arctic Cat ATV:
Bearcat 454 2x4 1997-1998
Bearcat 454 4x4 1996-1998
500 4x4 1998-1999
500 4x4 Manual 2000-2001
500 4x4 Manual 2002 FIS/ACT
(For 500 4x4 Auto 2000-2002, please choose Model 1)
