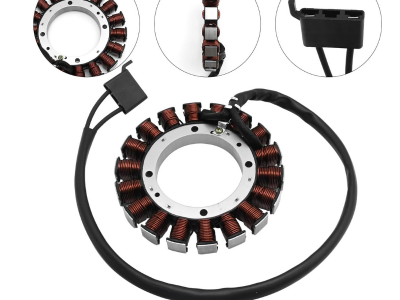

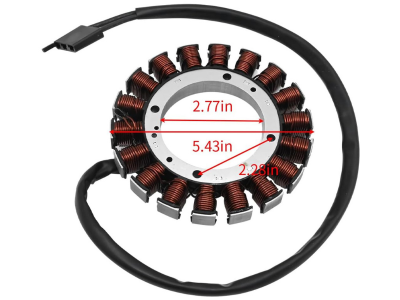

Complete Magneto Stator with Connectors 25AMP

Replace Part Numbers:

1208502-S 2508505 2575507-S 2808502-S

12-085-02-S 25-085-05 25-755-07-S 28-085-02-S

12 085 02-S 25 085 05 25 755 07-S 28 085 02-S

Compatible with Kohler Engine Models:

M18 M20 CH11S CH13GS CH13ST CH14ST CH15GS CH15S CH18 CH18S CH20 CH20S CH22QS CH22 CH22S CH23S CH25S CH640S CH680S CH730 CH730GS CH730S CH740S CH745S CH750S LH685 LH690 LH775

The stator assembly kit is a replacement for OEM part number 28-085-02-S

COMPATIBLE WITH MODELS

74240, Z286E Z Master, With 62" SFS Side Discharge Mower

2002 (SN 220000001-220999999) 74241, Z286E Z Master, with 72" SFS Side Discharge Mower.2002 (SN 220000001-220999999) 74255, Z588E Z Master, with 60in TURBO FORCE Side Discharge Mower

2004 (SN 240000001-240999999) 74255, Z588E Z Master, with 60in TURBO FORCE Side Discharge Mower.2005 (SN 250000001-250999999) 74255, Z588E Z Master, with 60in TURBO FORCE Side Discharge Mower

2006 (SN 260000109-260999999) 74256, Z588E Z Master, with 72in TURBO FORCE Side Discharge Mower.2004 (SN 240000001-240999999) 74256, Z588E Z Master, with 72in TURBO FORCE Side Discharge Mower

2005 (SN 250000001-250999999) 74256, Z588E Z Master, with 72in TURBO FORCE Side Discharge Mower.2006 (SN 260000001-260000108) 74256, Z588E Z Master, with 72in TURBO FORCE Side Discharge Mower.2006 (SN 260000109-260999999)

CH1000-0002 BASIC 37 HP(27.5 kW), CH1000-0010 YETMAN'S LTD 37 HP (27.5 kW)

CH1000-0012 BASIC 37 HP (27.5 kW), CH1000-0013 DESSCO 37 HP (27.5 kW)

CH1000-0016 ZIEGLER 37 HP(27.5 kW), CH1000-2002 BASIC 37 HP (27.5 kW)

CH1000-2010 YETMAN'S LTD 37 HP (27.5 kW),CH1000-2012 BASIC 37 HP (27.5 kW)

CH1000-2018 ALLEN ENGINEERING 37 HP (27.5 kW), CH1000-2019 U-YOUNG 37 HP (27.5 kW)

CH1000-2020 YETMAN'S LTD 37 HP (27.5 kW), CH1000-2023 BASIC 37 HP (27.5 kW) CH1000-2023 BASIC 37 HP (27.5 kW)

CONTENTS

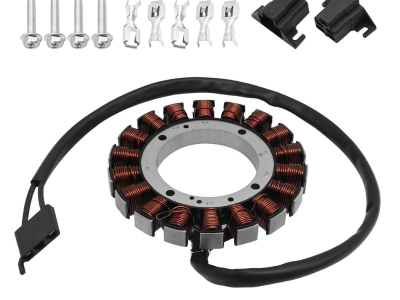

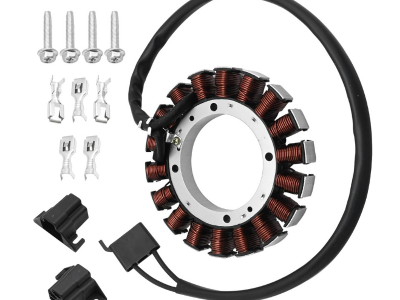

1 x Stator Assembly, 2 x Connector, 4 X Screw, 5 X Clap, 1 X Cleaning Brush

Note: Please compare the pictures carefully to make sure they match the parts you want.
