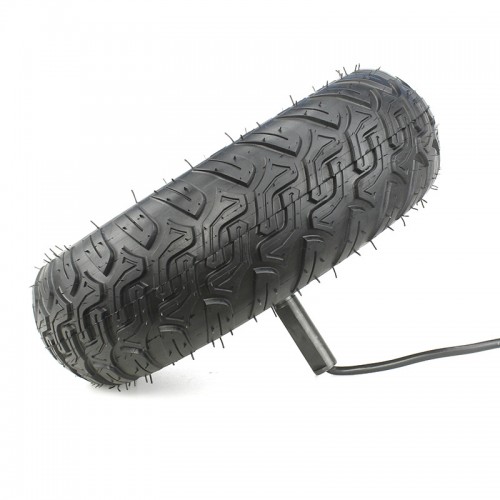

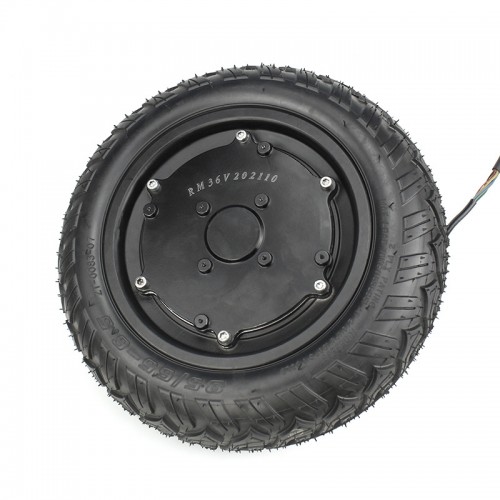

10-inch single-sided 16x59 brushless sensor hub motor for agricultural carts
$79.50
1Piece Minimum order
PRODUCT PARAMETERS
- Operating Voltage: 36V DC
- No-Load Current: ≤0.3A
- Rated Power: 350W
- Hall Sensor Angle: 120 degrees
- Magnet Pole Pairs: 15 pairs
- Coil Winding: 0.47mm x 5 strands x 12 turns
- Rated speed: 500±30 RPM
- Calculated torque: 13 N·m
- Maximum load: 120 kg
- Hub net weight: 4 kg
- Operating environment temperature: -20°C to +55°C
- Outer diameter/thickness: 268 x 87 mm
- No-Load Current: ≤0.3A
- Rated Power: 350W
- Hall Sensor Angle: 120 degrees
- Magnet Pole Pairs: 15 pairs
- Coil Winding: 0.47mm x 5 strands x 12 turns
- Rated speed: 500±30 RPM
- Calculated torque: 13 N·m
- Maximum load: 120 kg
- Hub net weight: 4 kg
- Operating environment temperature: -20°C to +55°C
- Outer diameter/thickness: 268 x 87 mm
