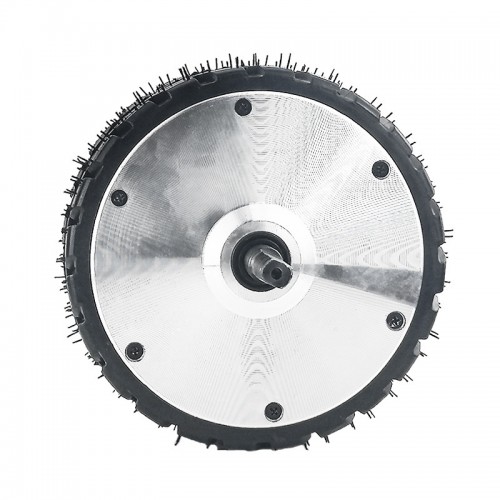

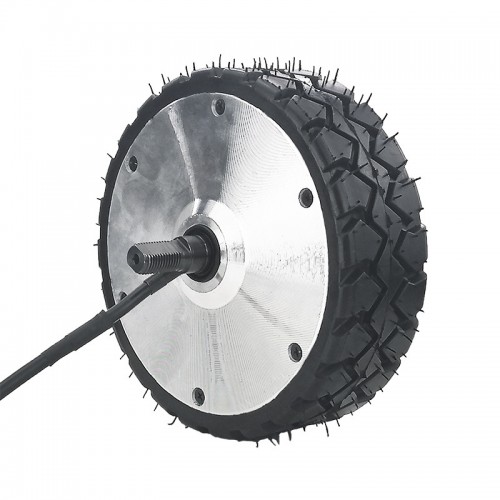

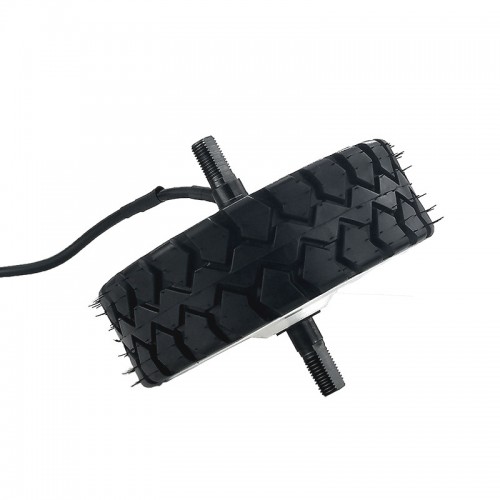

7-inch 48V 350W Dual-Axis DC Brushless Hub Motor with Threaded Flat Tire
$38.50
1Piece Minimum order
PRODUCT PARAMETERS
- **Operating Voltage**: 48V DC
- **No-Load Current**: ≤0.35A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet Pole Pairs**: 15 pairs
- **Coil Winding**: 0.51mm x 3 strands x 20 turns
- **Rated Speed**: 300±30 rpm
- **Calculated Torque**: 21 Nm
- **Maximum Load**: 200 kg
- **Hub Net Weight**: 3 kg
- **Operating Temperature Range**: -20°C to +65°C
- **Outer Diameter/Thickness**: 165 × 55 mm
- **No-Load Current**: ≤0.35A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet Pole Pairs**: 15 pairs
- **Coil Winding**: 0.51mm x 3 strands x 20 turns
- **Rated Speed**: 300±30 rpm
- **Calculated Torque**: 21 Nm
- **Maximum Load**: 200 kg
- **Hub Net Weight**: 3 kg
- **Operating Temperature Range**: -20°C to +65°C
- **Outer Diameter/Thickness**: 165 × 55 mm
