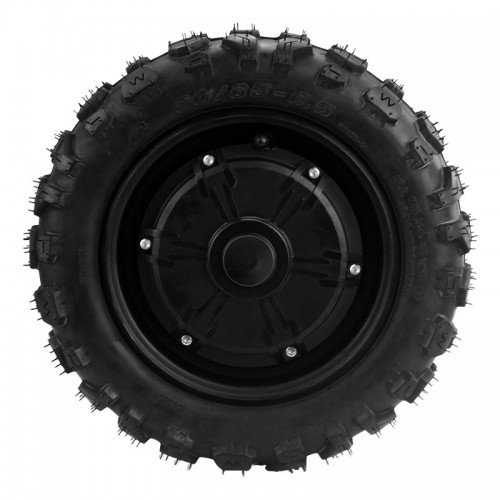

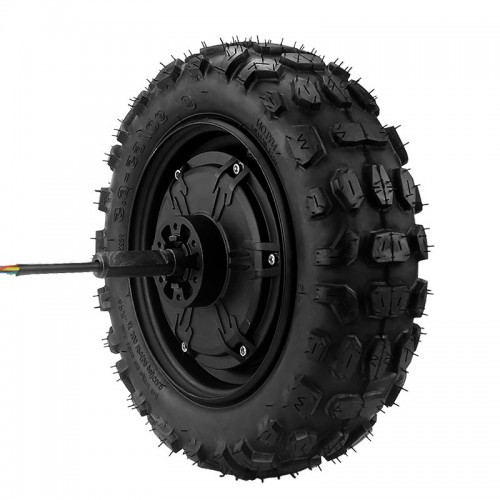

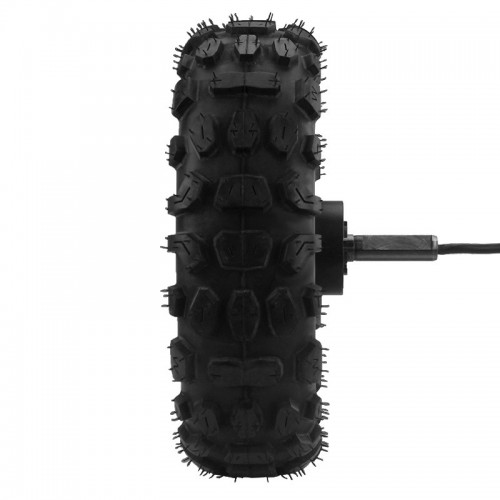

11-inch 36V 350W Electric Scooter Brushless Sensor Hub Motor
$55.50
1Piece Minimum order
PRODUCT PARAMETERS
- **Operating Voltage**: 36V DC
- **No-Load Current**: ≤0.5A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet pole pairs**: 15 pairs
- **Coil winding**: 0.51mm x 5 strands x 12 turns
- **Rated speed**: 500±30 rpm
- **Calculated torque**: 15 Nm
- **Maximum load**: 120 kg
- **Hub Net Weight**: 3.8 kg
- **Operating Temperature Range**: -20°C to +65°C
- **Outer Diameter/Thickness**: 278 × 82 mm
- **No-Load Current**: ≤0.5A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet pole pairs**: 15 pairs
- **Coil winding**: 0.51mm x 5 strands x 12 turns
- **Rated speed**: 500±30 rpm
- **Calculated torque**: 15 Nm
- **Maximum load**: 120 kg
- **Hub Net Weight**: 3.8 kg
- **Operating Temperature Range**: -20°C to +65°C
- **Outer Diameter/Thickness**: 278 × 82 mm
