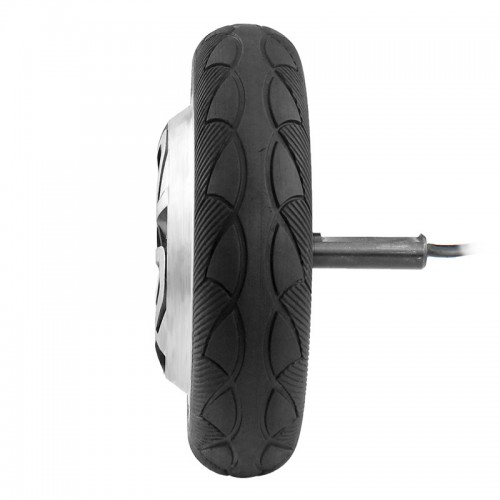

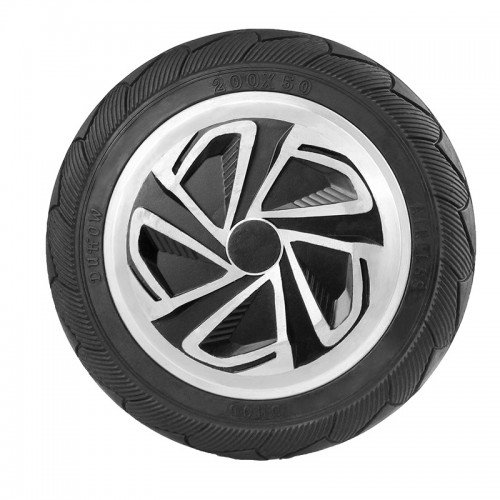

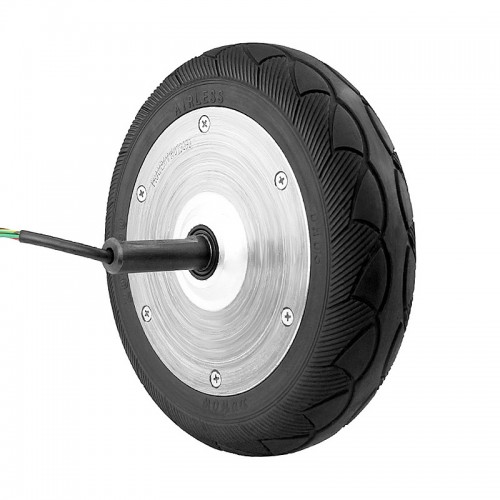

8-inch 36V 350W Balance Bike 350W High-Power DC Brushless Hub Motor
$36.50
1Piece Minimum order
PRODUCT PARAMETERS
- **Operating Voltage**: 36V DC
- **No-Load Current**: ≤0.3A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet pole pairs**: 15 pairs
- **Coil winding**: 0.47mm x 5 strands x 12 turns
- **Rated speed**: 500±30 rpm
- **Calculated torque**: 13 Nm
- **Maximum load**: 120 kg
- **Hub net weight**: 3 kg
- **Operating environment temperature**: -20°C to +65°C
- **Outer diameter/thickness**: 197 × 45 mm
- **No-Load Current**: ≤0.3A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet pole pairs**: 15 pairs
- **Coil winding**: 0.47mm x 5 strands x 12 turns
- **Rated speed**: 500±30 rpm
- **Calculated torque**: 13 Nm
- **Maximum load**: 120 kg
- **Hub net weight**: 3 kg
- **Operating environment temperature**: -20°C to +65°C
- **Outer diameter/thickness**: 197 × 45 mm
