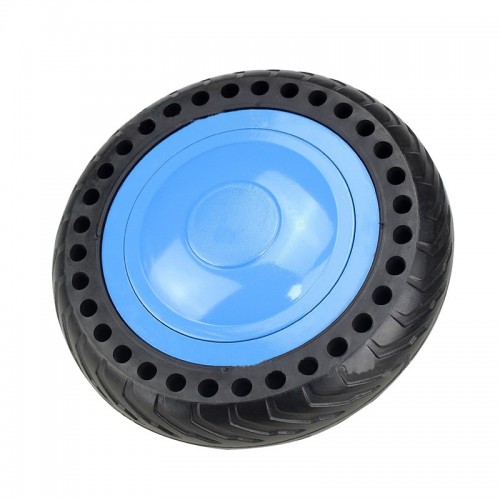

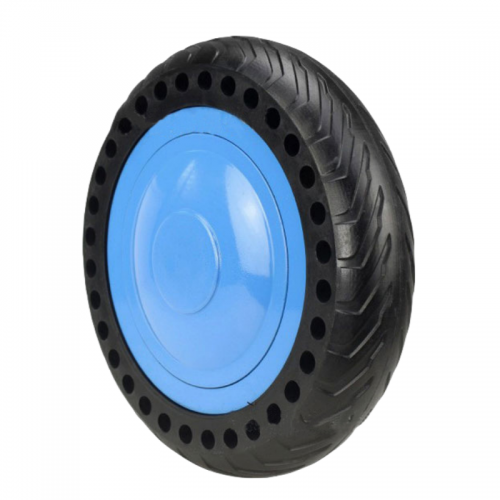

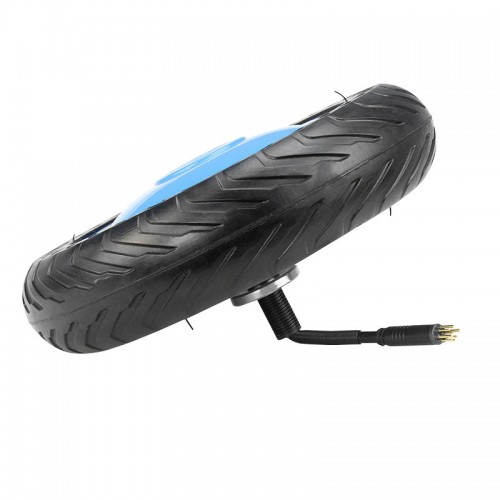

9-inch single-axis threaded high-torque brushless DC hub motor
$57.50
1Piece Minimum order
PRODUCT PARAMETERS
- **Operating voltage**: 36V DC
- **No-load current**: ≤0.3A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet Pole Pairs**: 15 pairs
- **Coil Winding**: 0.47mm x 5 strands x 12 turns
- **Rated Speed**: 550±30 RPM
- **Calculated Torque**: 13 N·m
- **Maximum Load**: 120 kg
- **Hub Net Weight**: 3.5 kg
- **Operating Temperature Range**: -20°C to +55°C
- **Outer Diameter/Thickness**: 222 × 50 mm
- **No-load current**: ≤0.3A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet Pole Pairs**: 15 pairs
- **Coil Winding**: 0.47mm x 5 strands x 12 turns
- **Rated Speed**: 550±30 RPM
- **Calculated Torque**: 13 N·m
- **Maximum Load**: 120 kg
- **Hub Net Weight**: 3.5 kg
- **Operating Temperature Range**: -20°C to +55°C
- **Outer Diameter/Thickness**: 222 × 50 mm
