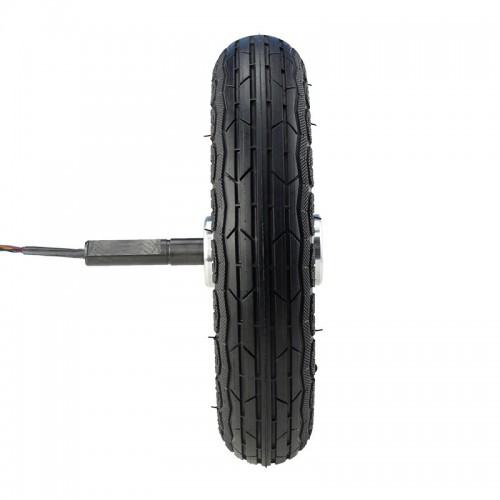

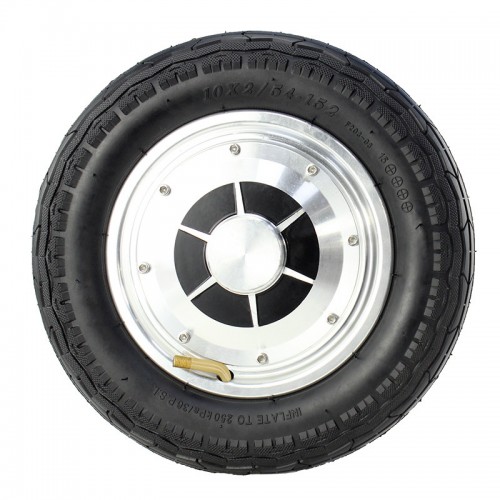

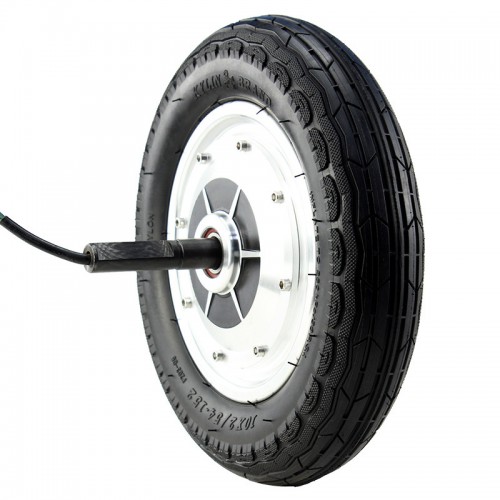

10-inch single-axis DC brushless hub motor balance bike
$55.50
1Piece Minimum order
PRODUCT PARAMETERS
- **Operating Voltage**: 36V DC
- **No-Load Current**: ≤0.3A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet pole pairs**: 15 pairs
- **Coil winding**: 0.47 mm × 5 strands × 12 turns
- **Rated speed**: 550 ± 30 rpm
- **Calculated torque**: 13 N·m
- **Maximum load**: 100 kg
- **Hub Net Weight**: 4 kg
- **Operating Temperature Range**: -20°C to +65°C
- **Outer Diameter/Thickness**: 259 × 54 mm
- **No-Load Current**: ≤0.3A
- **Rated Power**: 350W
- **Hall Sensor Angle**: 120 degrees
- **Magnet pole pairs**: 15 pairs
- **Coil winding**: 0.47 mm × 5 strands × 12 turns
- **Rated speed**: 550 ± 30 rpm
- **Calculated torque**: 13 N·m
- **Maximum load**: 100 kg
- **Hub Net Weight**: 4 kg
- **Operating Temperature Range**: -20°C to +65°C
- **Outer Diameter/Thickness**: 259 × 54 mm
