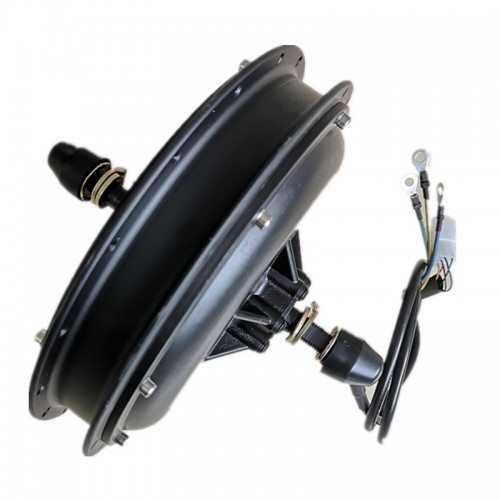

1000W Brushless DC Hub Spoke Motor Electric Bicycle
$70.50
1Piece Minimum order
PRODUCT PARAMETERS
Voltage: 24-60V
Power: 250W/350W/500W/750W/1000W
Motor type: Brushless gearless 205 series hub motor
Motor net weight: 6.5-7 kg
Motor net weight (with gearbox and disc brake drum): 6.5-7 kg
Motor diameter: 243 mm
Motor shaft diameter: M14
Motor shaft length: 218 mm
Motor cable length: 150 cm
Number of Hall sensors: 3
Rated speed: 180-550 RPM
Rated torque: 15-35 Nm
Magnet body dimensions: 13.65 x 3 x 24/30 mm x 46
Power: 250W/350W/500W/750W/1000W
Motor type: Brushless gearless 205 series hub motor
Motor net weight: 6.5-7 kg
Motor net weight (with gearbox and disc brake drum): 6.5-7 kg
Motor diameter: 243 mm
Motor shaft diameter: M14
Motor shaft length: 218 mm
Motor cable length: 150 cm
Number of Hall sensors: 3
Rated speed: 180-550 RPM
Rated torque: 15-35 Nm
Magnet body dimensions: 13.65 x 3 x 24/30 mm x 46
