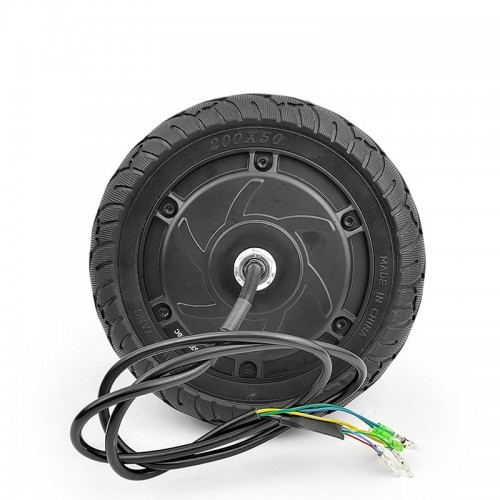

8-inch 350W brushless hub motor kit with “200x50” drum brake wheel
$95.50
1Piece Minimum order
PRODUCT PARAMETERS
Voltage: 24 / 36 / 48 V
Output: 350 W
Maximum Speed: 30 km/h
Rated Efficiency: 79%
Rated Current: 14.5A / 9.8A / 7.3A
Rated Torque: 11 N.m
Maximum Load Capacity: 75 kg
Wheel size: 8 inches (outer diameter approximately 200 mm)
Net weight: 3 kg
The motor hub width is approximately 65 mm, so the inner width of your vehicle's front fork should be greater than 65 mm
This kit does not include a battery; a battery must be purchased separately. Both lead-acid batteries and lithium batteries are compatible. Recommended battery capacities: 24V 15Ah, 36V 12Ah, or 48V 10Ah
Output: 350 W
Maximum Speed: 30 km/h
Rated Efficiency: 79%
Rated Current: 14.5A / 9.8A / 7.3A
Rated Torque: 11 N.m
Maximum Load Capacity: 75 kg
Wheel size: 8 inches (outer diameter approximately 200 mm)
Net weight: 3 kg
The motor hub width is approximately 65 mm, so the inner width of your vehicle's front fork should be greater than 65 mm
This kit does not include a battery; a battery must be purchased separately. Both lead-acid batteries and lithium batteries are compatible. Recommended battery capacities: 24V 15Ah, 36V 12Ah, or 48V 10Ah
