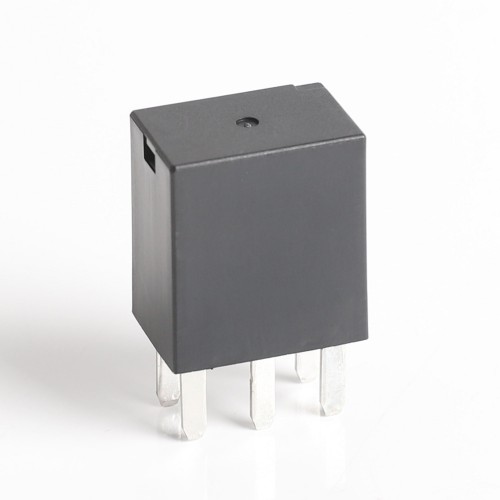

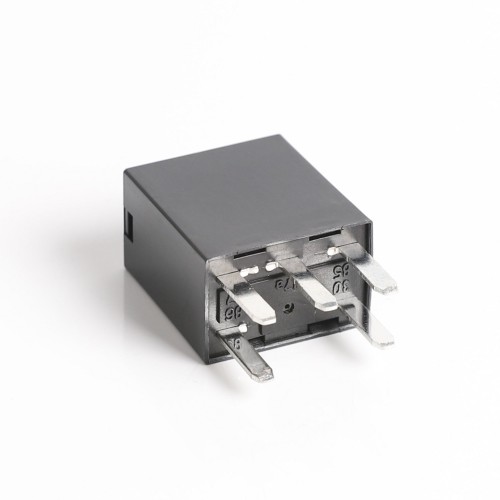

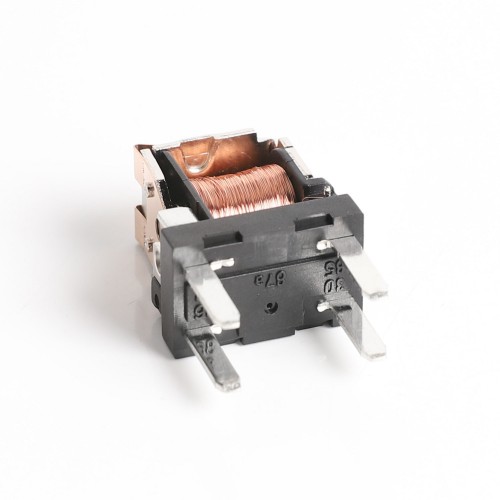

35A 12V Automotive Relay with Resistor
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Voltage |
12V |
Voltage
12V/14V/24V
Rated Current
20A/30A/40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 30A at 13.5VDC, 15A at 27VDC
1C: None/Digital 30A/20A 13.5VDC 15A/10A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C ~ +85 °C
