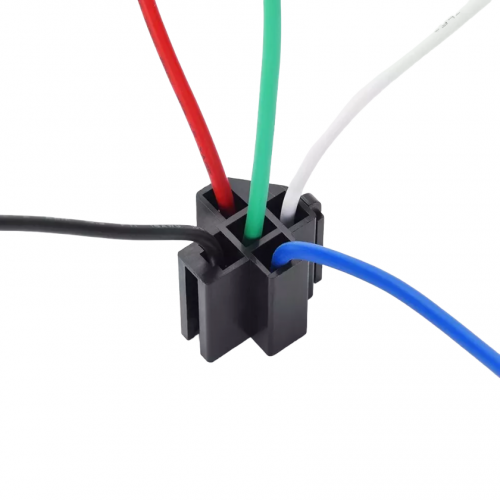

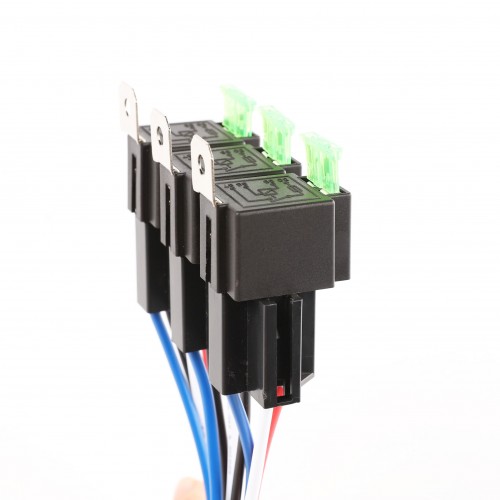

12VDC Automotive Fuse Relay Normally Open 5-Pin 30A
$7.99
1Piece Minimum order
PRODUCT PARAMETERS
Voltage
12V
Rated Current
40A
Coil Voltage
12V/24V
Pins
4-pin 5-pin
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC
1C: No/NC 30A/20A 13.5VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C ~ +85 °C
Operate/Release Time
10ms/5ms
12V
Rated Current
40A
Coil Voltage
12V/24V
Pins
4-pin 5-pin
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC
1C: No/NC 30A/20A 13.5VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C ~ +85 °C
Operate/Release Time
10ms/5ms
