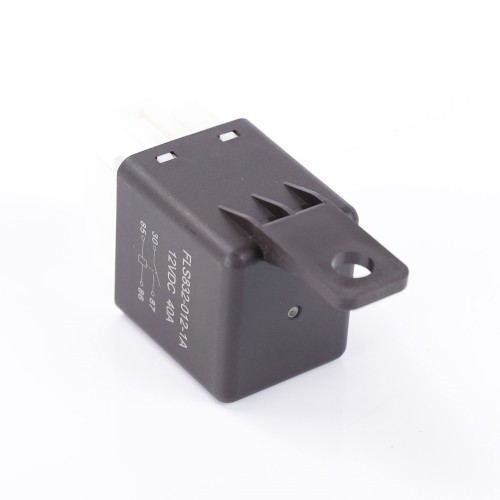

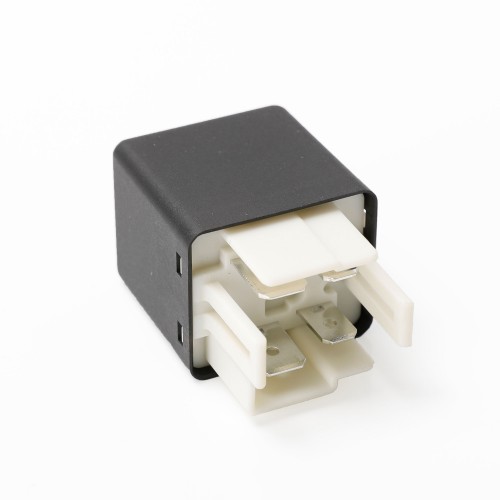

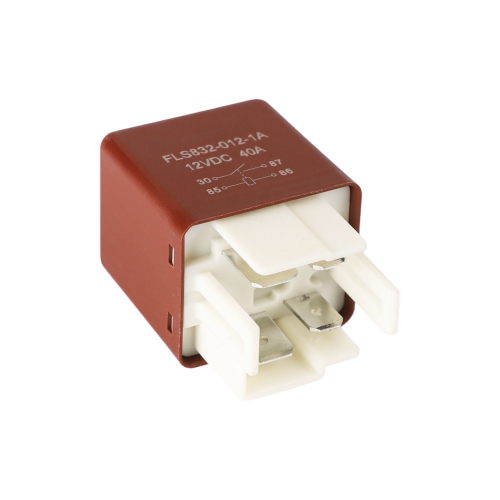

Automotive Air Conditioning Relay 12V 40A 5PIN
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Voltage |
12V |
Voltage
12V
Rated Current
40A
Contact Rating
40A/14VDC 30A/14VDC
Pins
4-pin 5-pin
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC
1C: NC 40A/30A 13.5VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
Operate/Release Time
10ms/10ms
