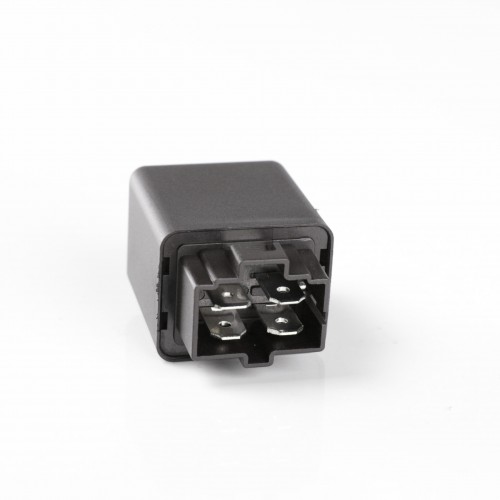

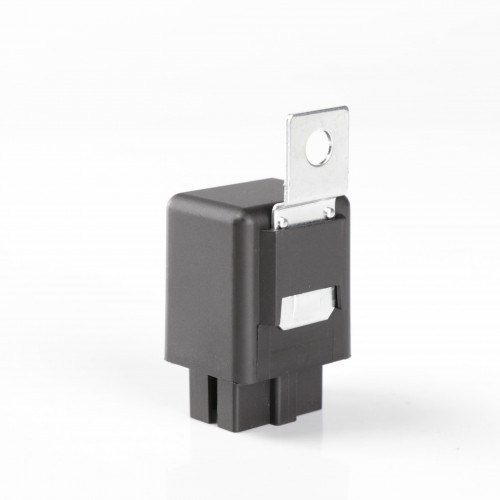

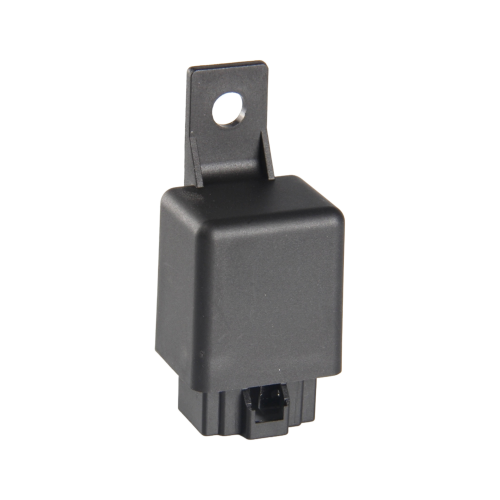

12VDC 40A 4-Pin Relay for Automotive Air Conditioning Headlight Fan
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Voltage |
12V |
Voltage
12V
Rated Current
40A
Coil Power
1.8W
Contact Rating
14VDC/30A 27VDC/15A
Maximum Operating Current
30A 40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A at 13.5VDC, 20A at 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
Operate/Release Time
10ms/10ms
