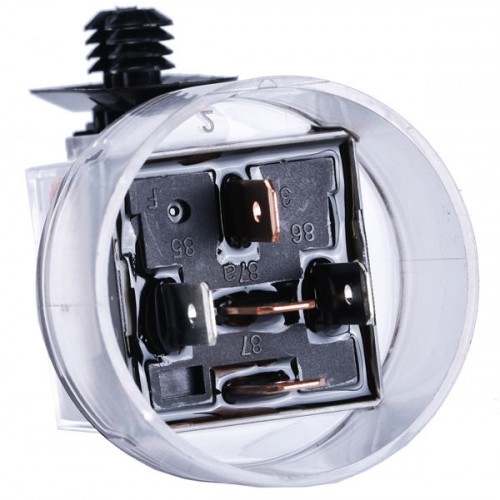

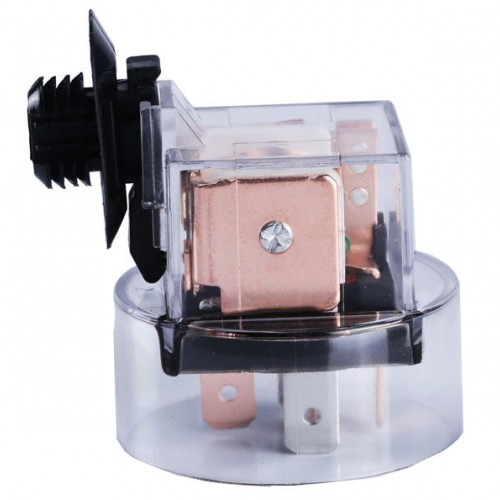

12V 5-Pin Relay for Renault 7700804117
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Voltage |
12V |
Voltage
12V/14V
Rated Current
40A
Coil Power
0.36W, 0.45W
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A at 13.5VDC, 20A at 27VDC
1C: NC/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
Operate/Release Time
10ms/10ms
