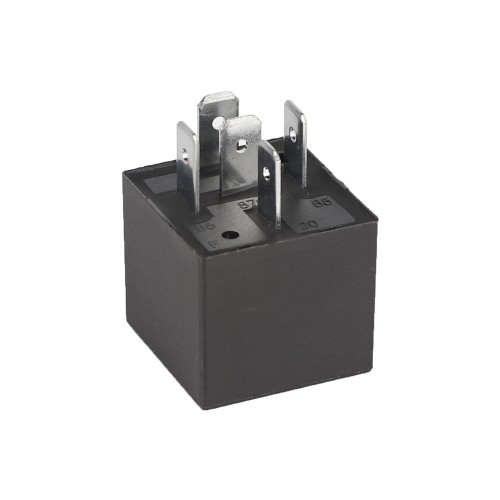

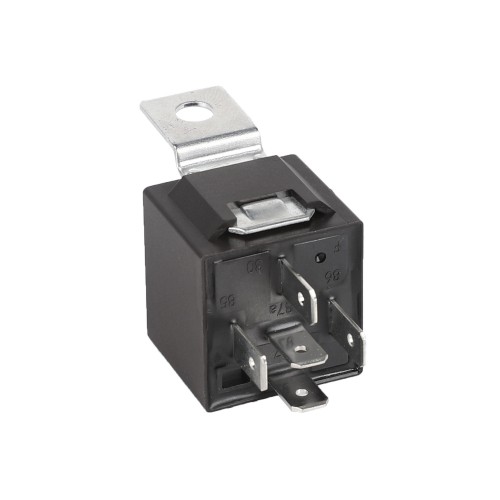

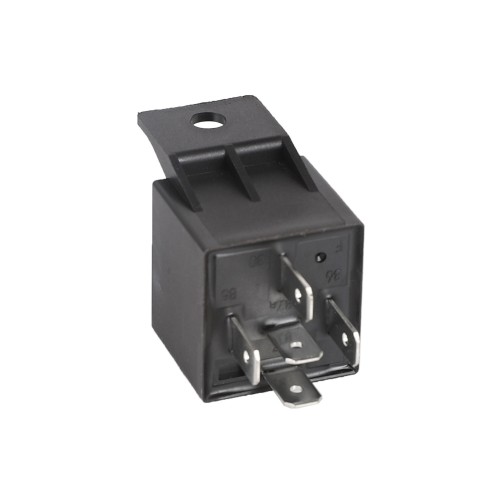

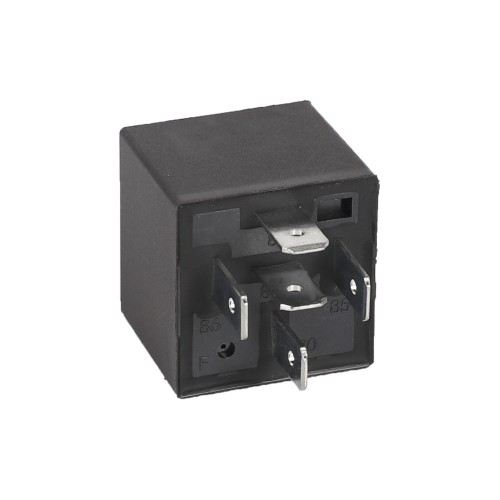

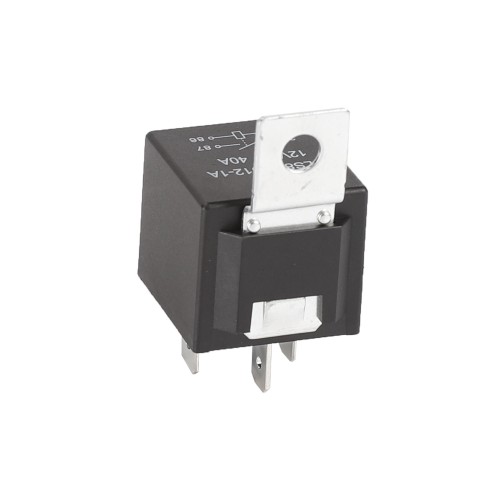

12V 40/30A Automotive Relay 5-Pin Kit
1Piece Minimum order
PRODUCT PARAMETERS
Category |
Automotive |
|---|---|
Voltage |
12V |
Maximum Switching Voltage
24V
Pins
5P, 4P
Rated Current
40A
Load Current
40A/30A
Coil Voltage
12VDC
Terminal Type
5-pin
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1C: NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
Operating/Release Time
10ms/10ms
