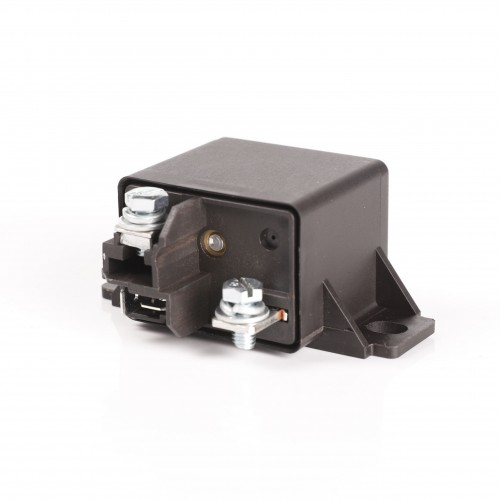

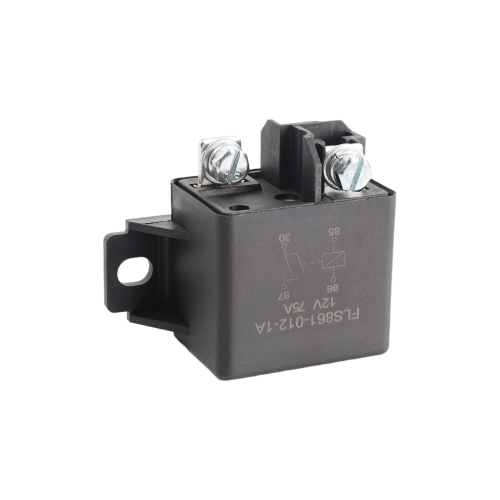

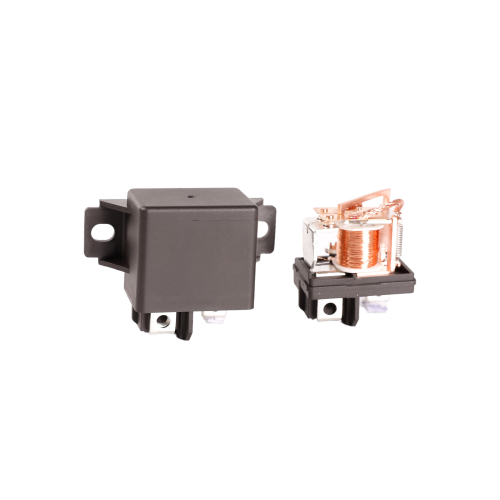

12V/24V 75A Automotive Starter Normally Open Relay
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Voltage |
12V |
Voltage
12V/24V
Rated Current
75/120/150/200A
Maximum Contact Control Capacity
200A
Coil Rated Voltage
12VDC 24V DC
Rated Coil Power
4.8W 6.5W
Coil Data
46Ω±10% 130Ω±10%
Pull-in Voltage
≤ 8VDC ≤ 17VDC
Release Voltage
≥ 1.2VDC ≥ 2.4VDC
