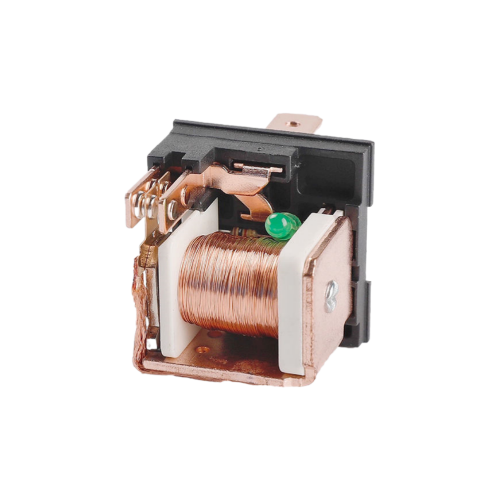

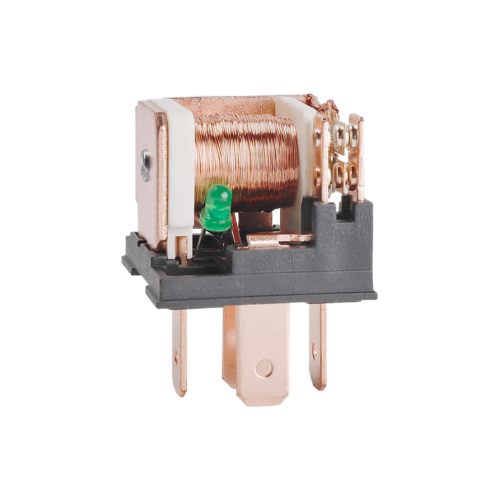

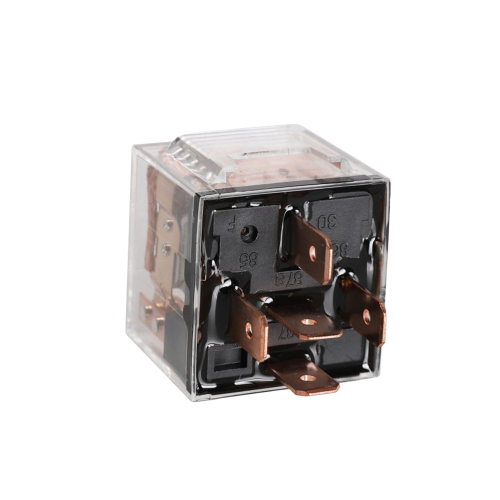

Dual-Contact 12V/24V Automotive Headlight Horn Relay 80A 5-Pin
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Voltage |
12V |
Voltage
12V
Rated Current
40A
Terminal Type
4 Pin/5 Pin
Contact Rating
40A/14VDC 30A/14VDC
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC 20A 27VDC
1C: NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
