PRODUCT DETAILS

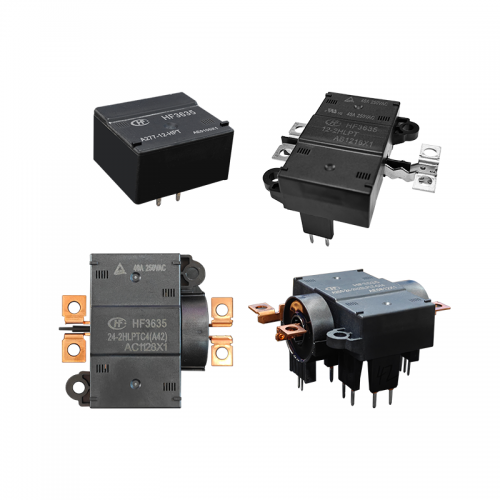

HF3635/A250-12-2HLPT 40A Continuous Current Automotive Relay

$11.99

1Piece Minimum order

Jinhua Xiaoxibian Technology Co., Ltd

  • Business type: ATV start motor

Chat

PRODUCT PARAMETERS

Type

Relay

Category

Automotive

Brand

Xiaoxibian

Maximum continuous current: 40A
Operating temperature up to 85°C
Coil voltage type: DC
Coil operating voltage: 12V
Contact form: Two sets of normally open
Coil power: Standard type
Load voltage: 250V
Rated Coil Power    Approx. 4.8W
Dielectric Withstand Voltage    4000VAC 1min
Operating Time (Unit: ms)    ≤30
Release Time (Unit: ms)    ≤5
Maximum Rated Switching Current (AC)    40
Maximum Switching Voltage (AC)    277
Temperature Range    -40 ℃ - 85 ℃
