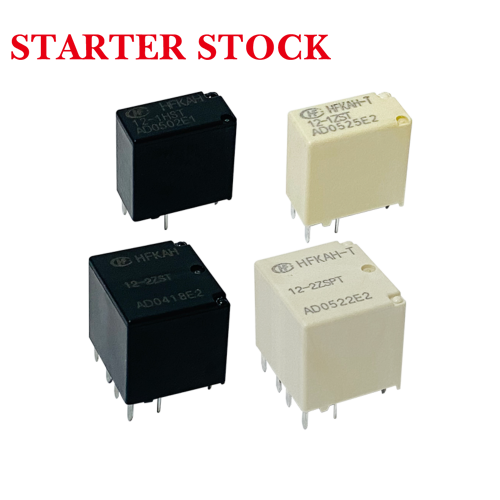

25A motor load
Ultra-compact
Normally open and changeover types available
Single or dual relays available
30A fuse rating available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Single-Pole Changeover
4. Number of Contacts: Single Contact
5. Terminal Configuration: PCB Mount
6. Mounting Type: PCB Mount
7. Package Type: Plastic Encapsulated
8. Coil Power Rating: Monostable High Power Type
9. Coil characteristic: Monostable
10. Contact material: AgSnO₂
11. Load voltage: 12
12. Rated coil power: Approx. 0.8W
13. Dielectric withstand voltage: 500VAC 1min
14. Operating time (Unit: ms): ≤10
15. Release time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 85°C
20. Mechanical Durability (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Application fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
23. Weight (units: g): Approx. 4
24. Dimensions (units: mm³): 14 × 7.2 × 13.5
