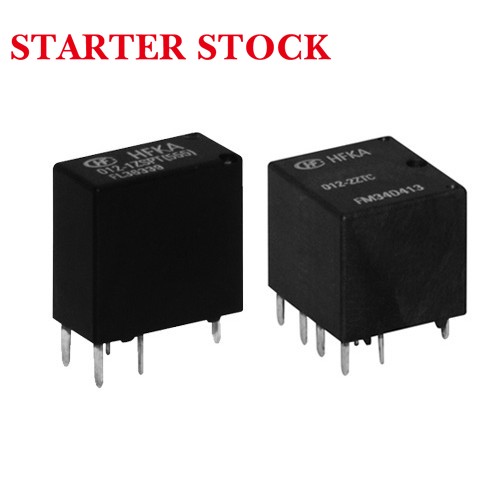

25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: Two sets of changeover contacts
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Plastic encapsulated
8. Coil Power: Low operating voltage type
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Load Voltage: 12V
12. Rated Coil Power: Approx. 0.8W
13. Dielectric Withstand Voltage: 500VAC 1min
14. Actuation Time (Unit: ms): ≤10
15. Release Time (Unit: ms): ≤10
16. Insulation Resistance (Unit: MΩ): 100
17. Maximum Rated Switching Current (DC): 25
18. Maximum Switching Voltage (DC): 16
19. Temperature Range: -40°C to 125°C
20. Mechanical Endurance (Unit: Cycles): 10,000,000
21. Electrical endurance (units): 100,000
22. Product Application Fields: Automatic doors/windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc. (Note: The original text had a period after “central door locks”; it has been corrected to a comma to maintain consistent enumeration logic)
23. Weight (Unit: g): Approx. 8
24. Volume (Unit: mm³): 14 × 15.4 × 14.2
