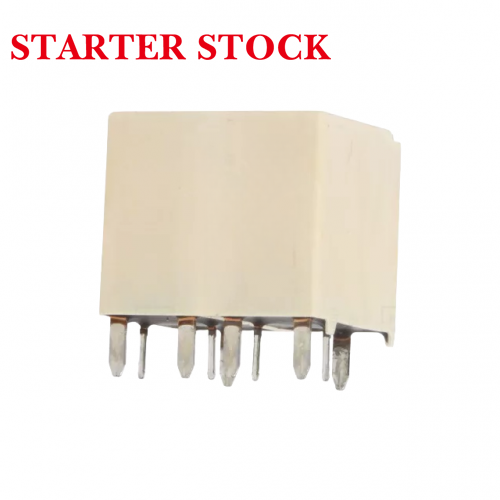

25A motor load
Ultra-compact
Changeover contact form
Single or dual relays available
Class H (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One set changeover
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mounted
6. Mounting Type: PCB mounting
7. Package Type: Solder mask type
9. Coil Power: Standard type
10. Coil Characteristic: Monostable
11. Contact Material: AgSnO₂
15. Load Voltage: 12
16. Rated Coil Power: Approx. 0.64W
17. Dielectric Withstand Voltage: 500VAC 1min
18. Actuation Time (Unit: ms): ≤10
19. Release Time (Unit: ms): ≤10
22. Insulation Resistance (Unit: MΩ): 100
24. Maximum Rated Switching Current (DC): 25
26. Maximum Switching Voltage (DC): 16
27. Temperature Range: -40°C to 125°C
28. Mechanical Endurance (Unit: Cycles): 10,000,000
29. Electrical endurance (units): 100,000
30. Contact Gap (Unit: mm): -
31. Product Application Fields: Automatic doors and windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc.
33. Weight (Unit: g): Approx. 4
34. Volume (Unit: mm³): 14×7.2×14.2
