PRODUCT DETAILS

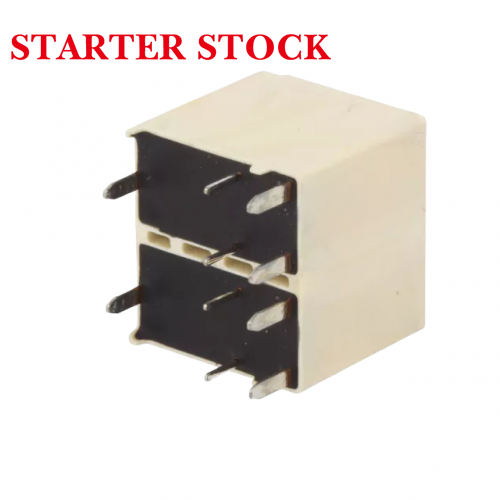

0.64W Automotive Relay Set HFKA-T/012-1ZST Standard Type

$11.99

1Piece Minimum order

  • Business type: ATV start motor

PRODUCT PARAMETERS

Type

Relay

Category

Automotive

Brand

Xiaoxibian

25A motor load
Ultra-compact
Changeover contact form
 Single or dual relays available
H-class (180°C) coil insulation rating
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Form: One set changeover
4. Number of Contacts: Single contact
5. Terminal Form: PCB-mount
6. Mounting Type: PCB mounting
7. Package Type: Plastic Encapsulated
9. Coil Power: Standard
10. Coil Characteristic: Monostable
11. Contact Material: AgSnO₂
15. Load Voltage: 12V
16. Rated Coil Power: Approx. 0.64W
17. Dielectric Withstand Voltage: 500VAC 1min
18. Operating Time (Unit: ms): ≤10
19. Release Time (Unit: ms): ≤10
22. Insulation Resistance (Unit: MΩ): 100
23. Maximum Rated Switching Current (AC): -
24. Maximum Rated Switching Current (DC): 25
25. Maximum Switching Voltage (AC): -
26. Maximum Switching Voltage (DC): 16
27. Temperature Range: -40°C to 125°C
28. Mechanical Endurance (Units): 10,000,000
29. Electrical Endurance (Units): 100,000
30. Contact Gap (Unit: mm): -
31. Product Application Fields: Automatic doors and windows, central door locks, sunroof control, seat adjustment, indicator light control, wiper control, etc. (The period after “central door locks” in the original text has been corrected to a comma to maintain consistent enumeration logic)
32. Product Application Scenarios: -
33. Weight (Unit: g): Approx. 4
34. Volume (Unit: mm³): 14×7.2×14.2
