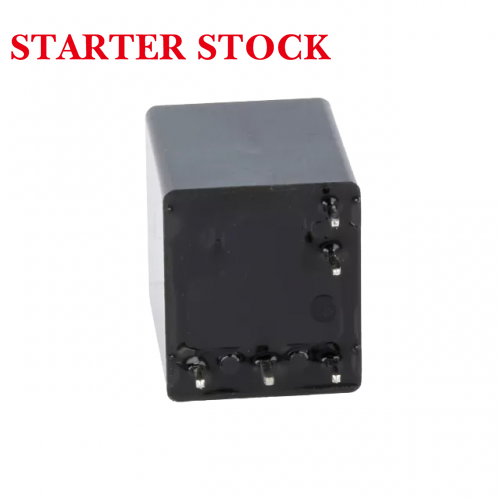

20A contact switching capacity
Six contact configurations available
Open-frame and molded-case options available
1. Coil Voltage Type: DC
2. Coil Operating Voltage: 12V
3. Contact Configuration: Dual Changeover
4. Number of contacts: Dual contacts
5. Terminal configuration: PCB-mount
6. Mounting type: PCB mounting
7. Package type: Molded plastic
8. Coil power rating: Standard
9. Coil characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging Type: Tube
12. Load Voltage: 12
13. Rated Coil Power: Approx. 1.1W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Maximum rated switching current (DC): 30
18. Maximum switching voltage (DC): 90
19. Temperature range: -40°C to 85°C
20. Mechanical endurance (cycles): 10,000,000
21. Electrical endurance (units): 200,000
22. Application fields: Indicator/illumination/flashing light control, instrumentation, automatic doors/windows, cold start, central door locks, sun visor control
23. Weight (units: g): Approx. 12
24. Dimensions (units: mm³): 17.5 × 15 × 19.5
