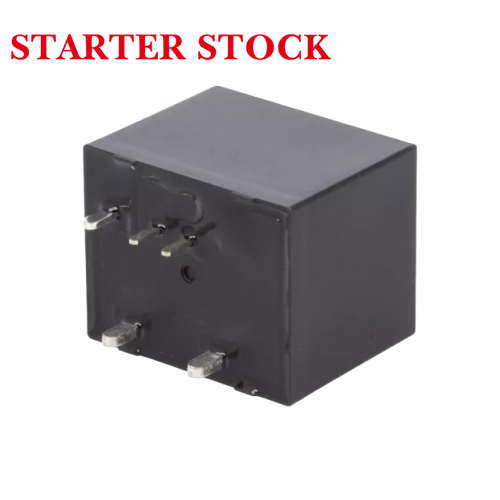

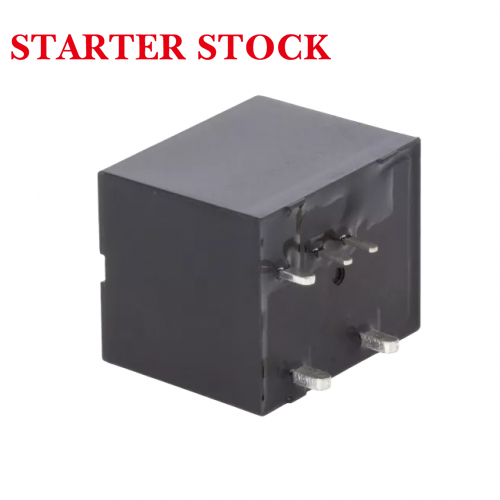

45A contact switching capacity
PCB mounting
Two contact configurations: one normally open, one changeover
1. Coil voltage type: DC
2. Coil operating voltage: 12V
3. Contact configuration: One changeover
4. Number of contacts: Single contact
5. Terminal type: PCB-mounted
6. Mounting type: PCB mounting
7. Package Type: European Plastic Enclosure
8. Coil Power Rating: Standard
9. Coil Characteristic: Monostable
10. Contact Material: AgSnO₂
11. Packaging: Blister Sheet
12. Load Voltage: 12V
13. Rated Coil Power: Approx. 1.6W
14. Dielectric Withstand Voltage: 500VAC 1min
15. Actuation Time (Unit: ms): ≤10
16. Release Time (Unit: ms): ≤10
17. Insulation Resistance (Unit: MΩ): 500
18. Maximum Rated Switching Current (DC): 100
19. Maximum Switching Voltage (DC): 75
20. Temperature range: -40°C to 125°C
21. Mechanical endurance (cycles): 10,000,000
22. Electrical endurance (cycles): 100,000
23. Application fields: Turn signal/ hazard warning lights/emergency brake lights, automotive audio systems, automotive air conditioning, fuel pump control, cold start, seat adjustment, rear window defogger, sun visor, solenoid starter switch, anti-theft device, central door lock, automatic windows
24. Weight (Unit: g): Approx. 20
25. Volume (Unit: mm³): 26.5 × 22 × 22.3
