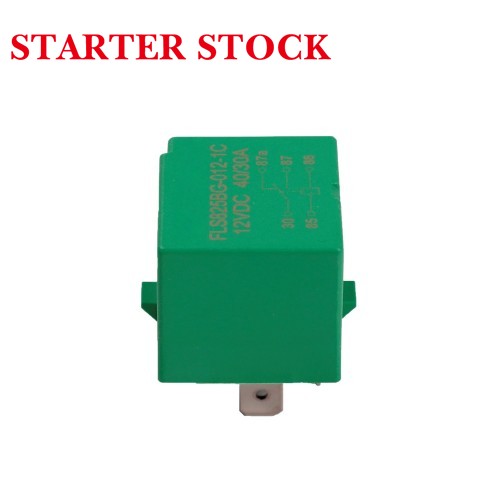

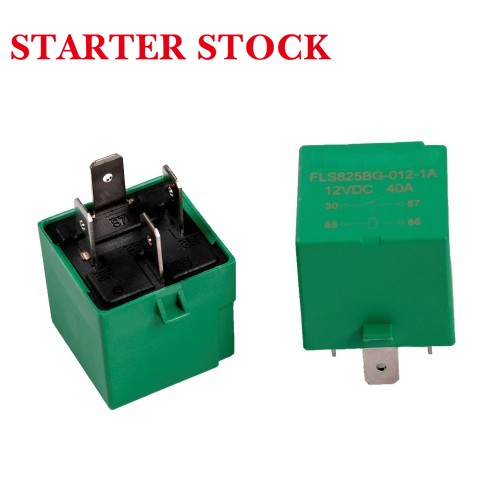

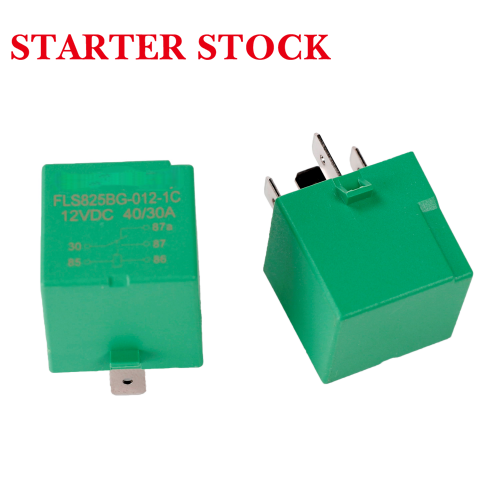

12V 5-Pin Green Cover with Lock Hole Automotive Relay
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Voltage
12V
Rated Current
40A
Contact Capacity
40A/14VDC 30A/14VDC
Shell
PA66
Maximum Operating Current
40A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 40A 13.5VDC 20A 27VDC
1C: NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C ~ +85 °C
Operating/Release Time
10ms/10ms
