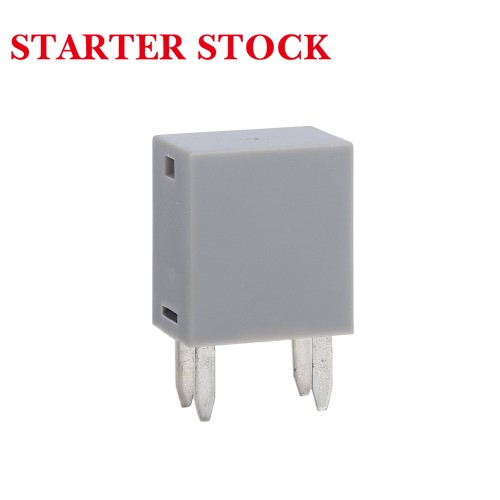

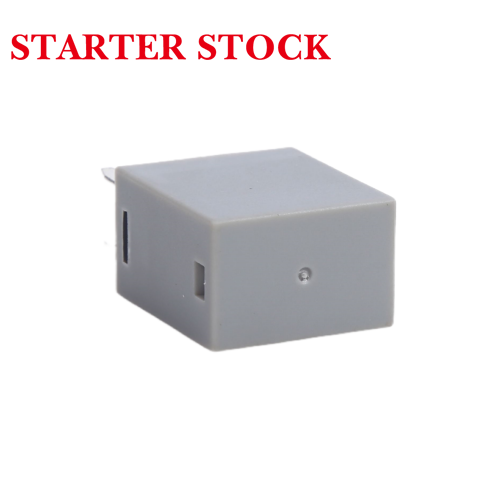

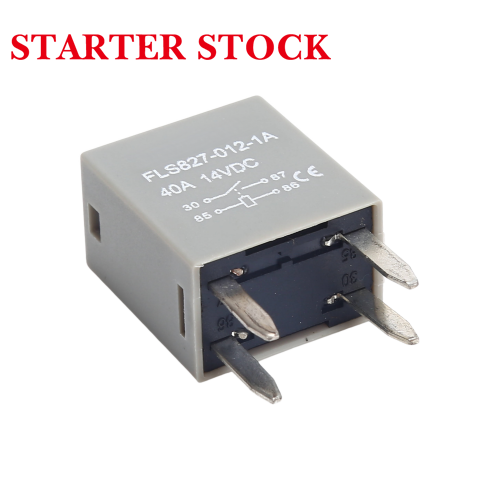

40A 12VDC Automotive Cooling Fan Motor Relay 4-Pin
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Voltage
12V
Rated Current
40A
Contact Capacity
40A/14VDC 30A/14VDC
Maximum Operating Current
30A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 30A 13.5VDC 15A 27VDC
1C: None/Digital 30A/20A 13.5VDC 15A/10A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C ~ +85 °C
Operate/Release Time
10ms/10ms
