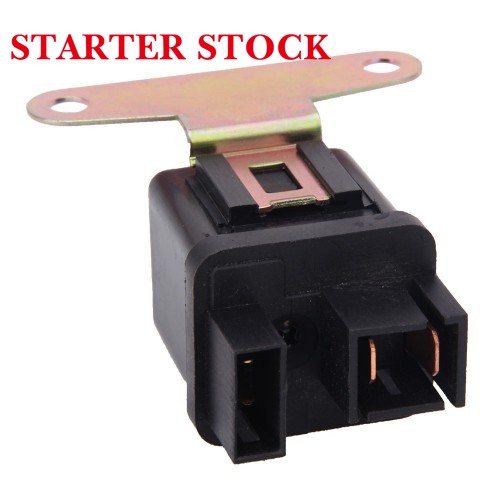

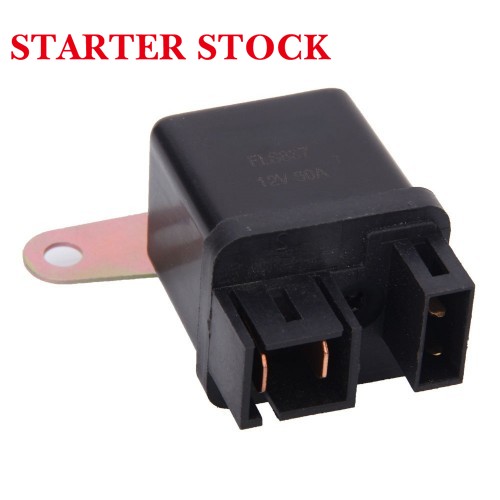

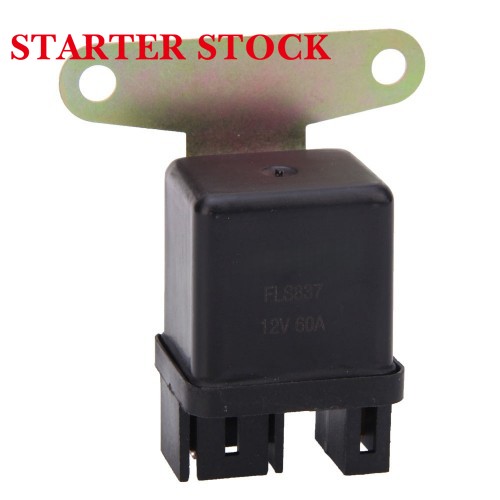

12V 60A Automotive Wiring Horn Relay
$8.57
1Piece Minimum order
PRODUCT PARAMETERS
Voltage
12V
Rated Current
60A
Maximum Operating Current
60A
Maximum Operating Voltage
27VDC
Nominal Power Rating
4.2W
Ambient Temperature
-40°C to +85°C
Rated Voltage
DC12V/24V
Rated Load (Resistive Load)
40A at 13.5VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Operating Temperature Range
-40 °C to +85 °C
Operating/Release Time
10ms/10ms
12V
Rated Current
60A
Maximum Operating Current
60A
Maximum Operating Voltage
27VDC
Nominal Power Rating
4.2W
Ambient Temperature
-40°C to +85°C
Rated Voltage
DC12V/24V
Rated Load (Resistive Load)
40A at 13.5VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Operating Temperature Range
-40 °C to +85 °C
Operating/Release Time
10ms/10ms
