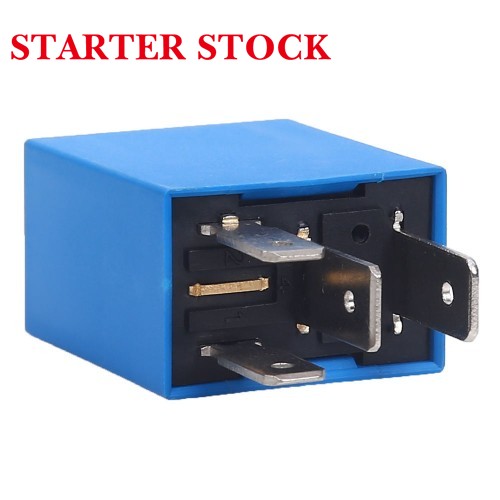

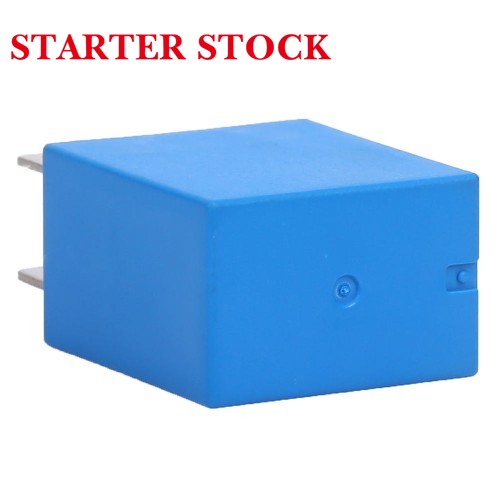

High-Current Automotive Relay 12V 24V 30A 40A
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Voltage
12V
Rated Current
30A
Maximum Operating Voltage
27VDC
Nominal Power Rating
1.6W, 1.8W
Rated Voltage
DC12V/24V
Maximum Operating Current
30A
Maximum Operating Voltage
27VDC
Rated Load (Resistive Load)
1A: 30A at 13.5VDC, 15A at 27VDC
1C: No/NC 30A/20A 13.5VDC 20A/10A 27VDC
Insulation Resistance
100MΩ
Dielectric Strength (Coil and Contacts)
500V AC/m
Ambient Temperature
-40 °C to +85 °C
