PRODUCT DETAILS

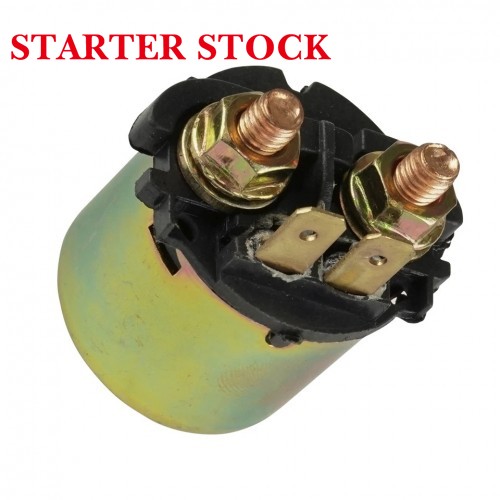

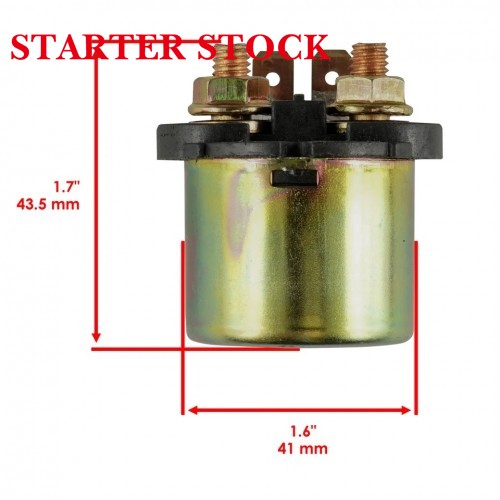

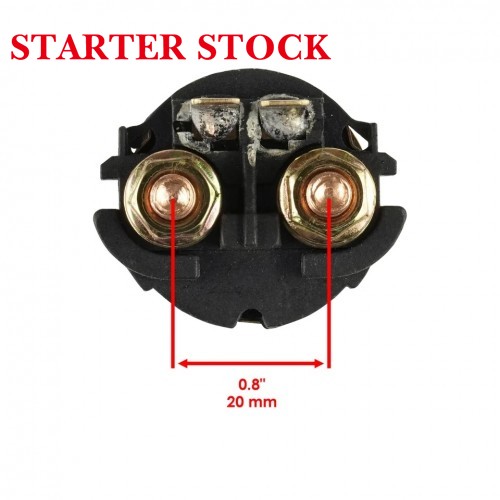

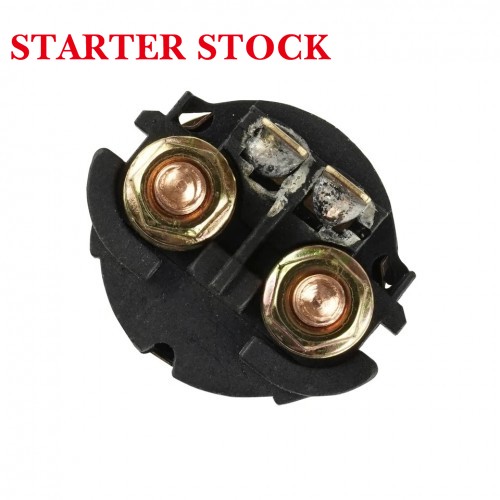

Starter Solenoid Relay Compatible with Kawasaki Bayou 400 4X4 1993-1999

$11.01

1Piece Minimum order

Jinhua Xiaoxibian Technology Co., Ltd

  • Business type: ATV start motor

Chat

PRODUCT PARAMETERS

Type

Relay

Category

Automotive

Brand

Xiaoxibian

For Kawasaki Models:
BAYOU 400 4X4 1993-1999

Voltage Rating 12V DC Terminal Configuration 4 Pin Copper Terminals Waterproof Rating IP65 Housing Material High Impact Heat-Resistant ABS Plastic Internal Core Material High Conductivity Pure Copper Operating Temperature Range -40°F to 185°F (-40°C to 85°C) OEM Replacement Part Numbers 27010-1238, 27010-1319 Mounting Hole Diameter 6mm (1/4") Activation Current ≤1.5A Rated Load Current 100A Continuous, 300A Peak Durability Test Cycle ≥10,000 On/Off Operation Cycles
