Starter Solenoid Relay Compatible with Suzuki DR-Z250 2001-2007 31800-13E00
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Suzuki Models:
DR-Z250 2001-2007

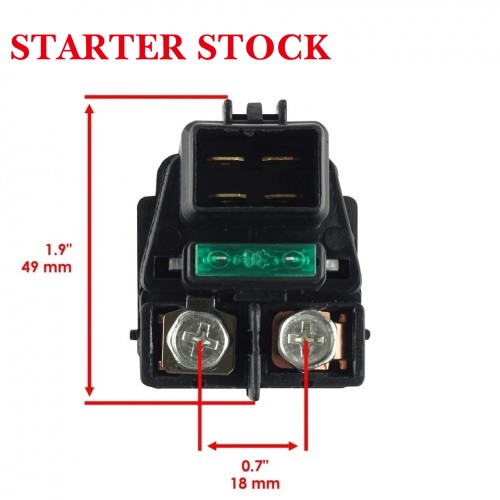

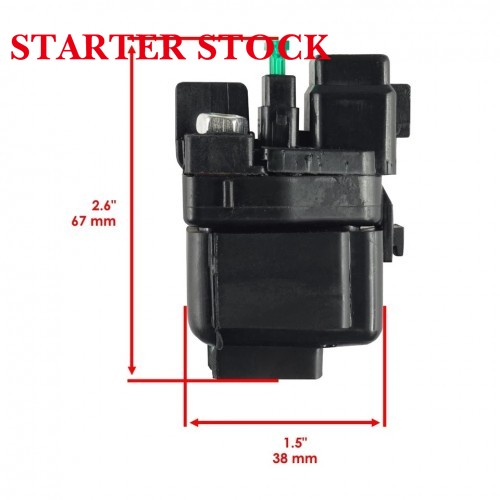

Length: 67 mm - 2.7 in
Width: 40.7 mm - 1.5 in
Height: 49 mm - 1.8 in
OEM Part Number: 31800-13E00 Interchange Part Number: 3180013E00 Rated Voltage: 12V DC Terminal Configuration: 4-Pin Copper Plated Housing Material: Flame Retardant Reinforced ABS Plastic Internal Contact Material: High Conductivity Silver Alloy Maximum Continuous Current Rating: 80A Operating Temperature Range: -40°C to 125°C (-40°F to 257°F) Waterproof & Dustproof Rating: IP65 Mounting Hole Diameter: 6.5 mm / 0.26 in Corrosion Resistance: Zinc Plated Metal Components Compatible Battery Type: 12V Lead-Acid Motorcycle Battery Service Life: ≥ 100,000 Operation Cycles
