For Suzuki Models:
AN400 BURGMAN 400 2003-2012
AN400S BURGMAN 400 2003-2006
AN400A BURGMAN 400 2007-2016
AN400AZA BURGMAN 400 2012-2016

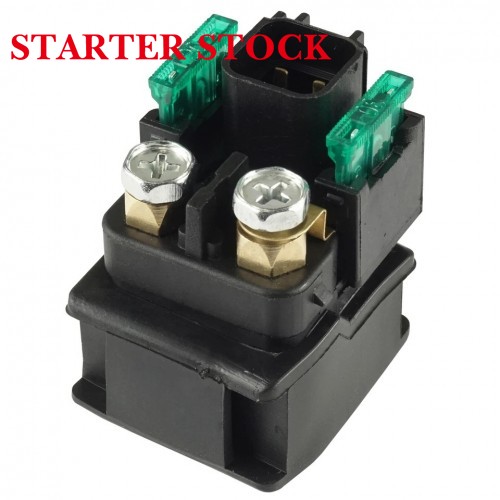

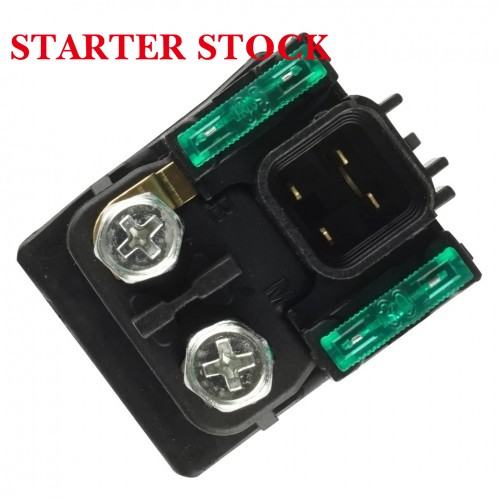

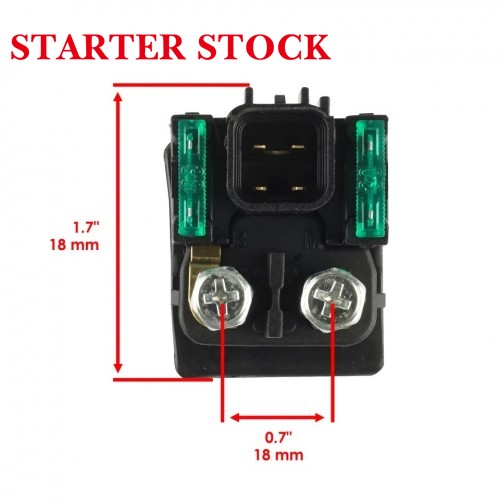

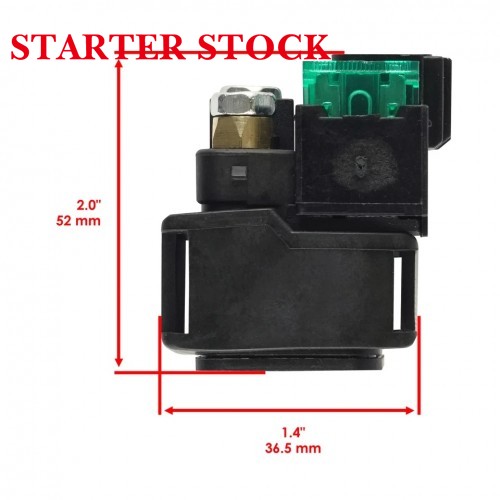

OEM Part Number 31800-21E20 Cross Reference Part Numbers 31800-21E10, 31800-05G00, 31800-10G00 Rated Operating Voltage 12V DC Coil Internal Resistance 17Ω ± 10% Maximum Contact Load Current 120A continuous, 220A peak (5 second limit) Mounting Style Bolt-on with 6mm diameter mounting hole Terminal Configuration 4-pin (2 x M6 large power terminals, 2 x 6.3mm small spade control terminals) Housing Material Heat-resistant reinforced ABS housing, pure copper internal contacts Operating Temperature Range -40°C to +125°C Ingress Protection Rating IP65 dustproof and splash water resistant Warranty Period 12 months from date of purchase
