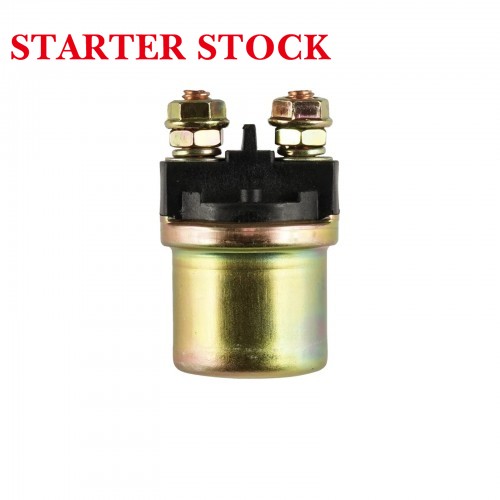

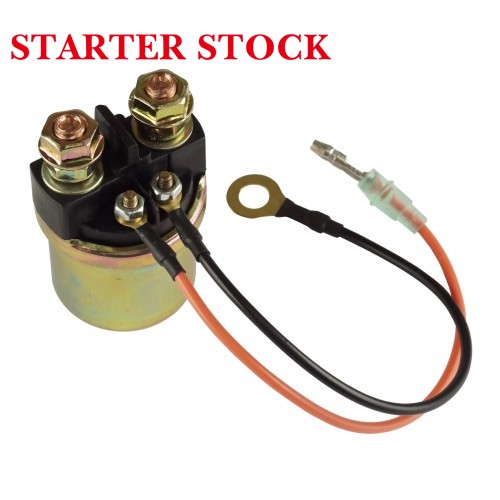

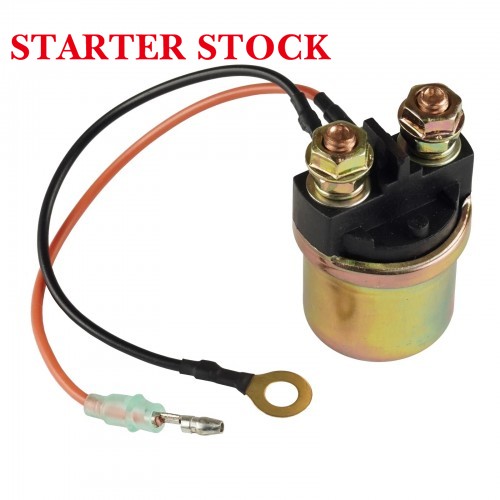

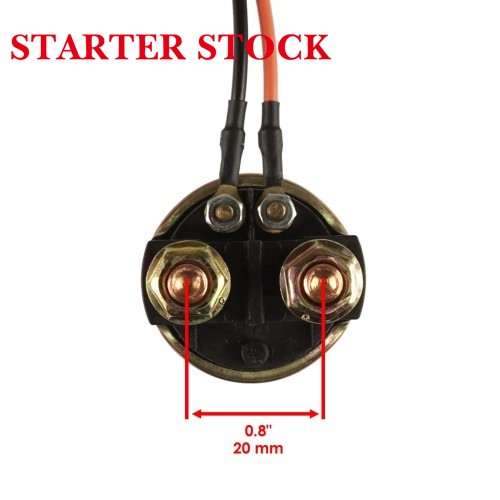

For Mercury Models:
50ELHPT 4-Stroke 50HP 2000-2006

Length: 34.5 mm - 1.3 in
Width: 34.5 mm - 1.3 in
Height: 54.5 mm - 2.1 in

Rated Voltage 12V DC Contact Current Rating 100A continuous, 200A inrush peak OEM Cross Reference Part Numbers 89-818998A1, 89-818998A2, 89-846174A1, 18-5818 Mounting Hole Diameter 4.2 mm / 0.165 in Terminal Configuration 4 spade terminals, 2 x 6.3mm control terminals, 2 x 9.5mm power terminals Insulation Housing Material UL94 V-0 flame retardant reinforced thermoplastic Operating Temperature Range -40°C to 125°C / -40°F to 257°F Ingress Protection Rating IP67 dustproof, waterproof, corrosion-resistant for marine use Coil Resistance 75 ohms ±10% at 20°C Contact Type Single Pole Single Throw (SPST), normally open Service Life Minimum 100,000 operation cycles under rated load Compatible Fuel Types Gasoline, ethanol-blend marine fuel up to 10% ethanol content
