For Kawasaki Models:
Klx650 1993-1996

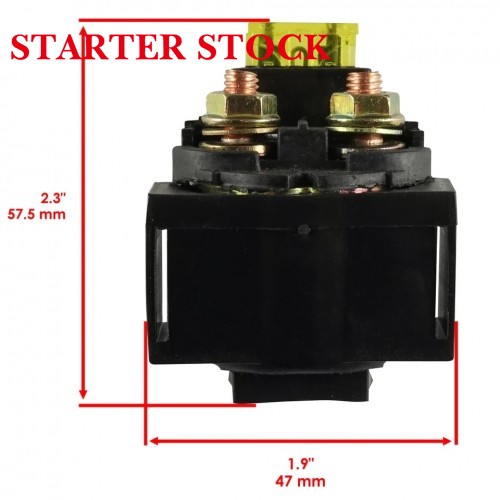

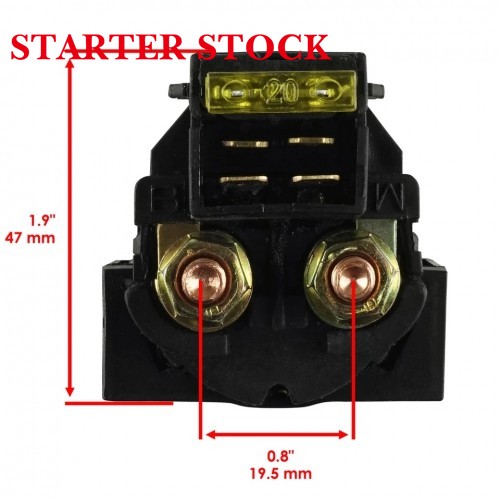

Length: 47 mm - 1.9 in
Width: 45 mm - 1.8 in
Height: 58 mm - 2.4 in

OEM Part Number 27010-1243 Voltage Rating 12V DC Terminal Configuration 4-pin tinned copper terminal Mounting Hole Diameter 6 mm - 0.24 in Housing Material Flame-retardant ABS housing with copper conductive core Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Contact Resistance ≤ 50 mΩ Insulation Resistance ≥ 100 MΩ (at 500V DC) Product Net Weight 62 g - 2.19 oz Mechanical Operation Lifespan ≥ 100,000 switching cycles IP Rating IP54 dust and splash resistant Maximum Switching Current 80A Coil Power Consumption 1.8W Cross Reference Part Numbers 27010-1227, 27010-1241, 27010-1266
