For Kawasaki Models:
Bayon 185 Klf185 1986-1988

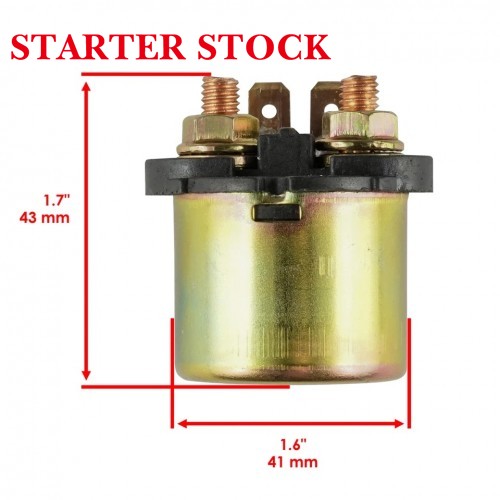

Length: 41.6 mm - 1.6 in
Width: 35 mm - 1.4 in
Height: 44 mm - 1.7 in

Voltage Rating 12V DC Terminal Configuration 4-pin spade terminal setup Mounting Hole Diameter 6.3 mm / 0.25 in Operating Temperature Range -40°C to 125°C / -40°F to 257°F Coil Resistance 70 ± 5 Ohms Contact Current Rating 30A continuous, 80A peak load capacity Housing Material High-impact flame-retardant ABS plastic Terminal Plating Material Tin-plated pure copper Ingress Protection Rating IP65, dust-tight and water spray resistant OEM Cross Reference Part Numbers 27010-1099, 27010-1133
