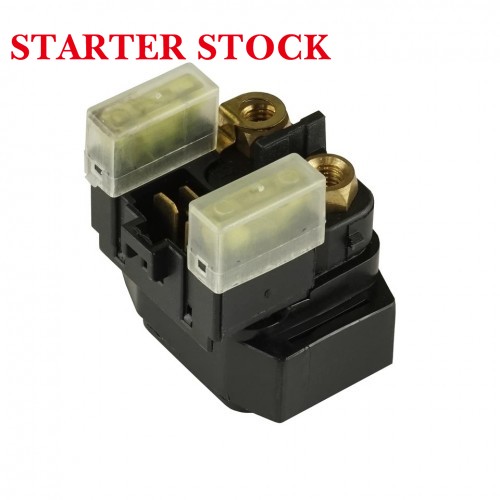

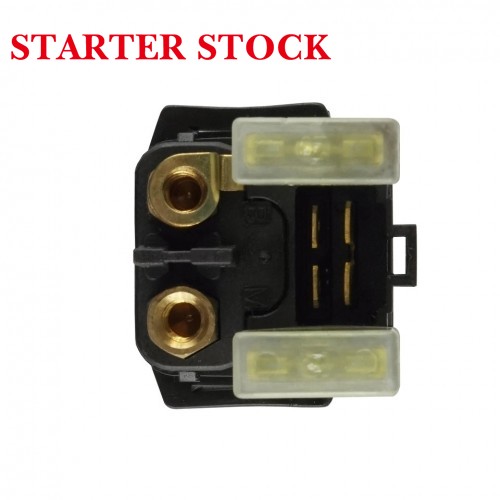

Starter Motorcycle Relay for Yamaha TW200 2001-2019 4XE-81940-00-00
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Yamaha Models:
Tw200 2001-2019

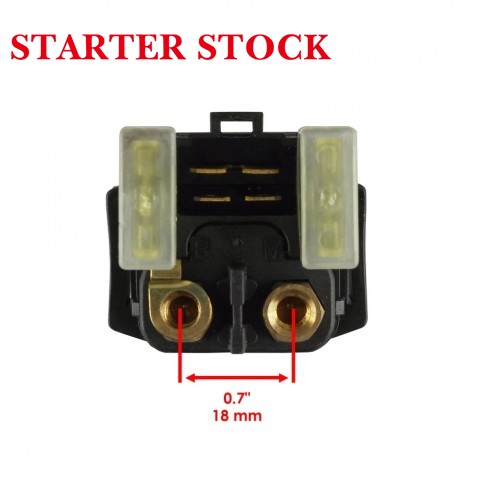

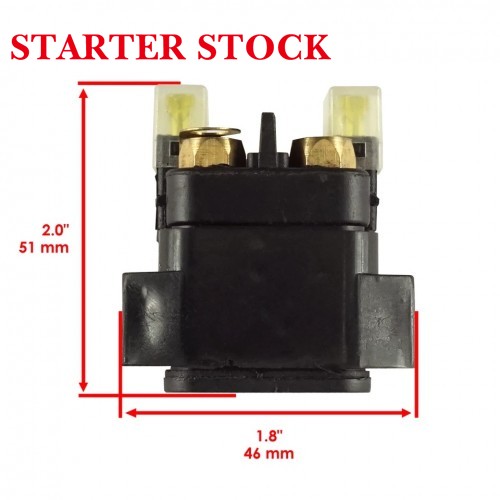

Length: 47 mm - 1.9 in
Width: 43 mm - 1.6 in
Height: 51mm - 2 in
OEM Part Number 4XE-81940-00-00 Rated Voltage 12V DC Rated Current Load 150A Continuous, 300A Peak Terminal Type 4 Copper Spade Terminals Housing Material Flame Retardant Reinforced ABS Plastic Contact Material Silver-Tin Oxide Alloy Operating Temperature Range -40°C to 125°C / -40°F to 257°F IP Rating IP65 Dustproof and Water Resistant Mounting Hole Diameter 6.5 mm / 0.26 in Coil Resistance 72 Ohms ± 10% Service Life ≥ 100,000 Operation Cycles
