For Honda Models:
Vf750 Interceptor Magna Sabre 1982-1984

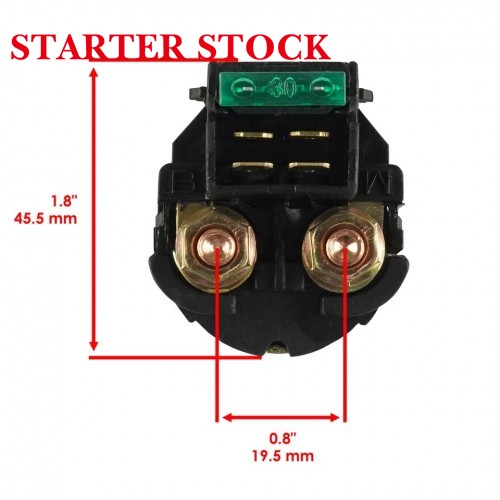

Length: 46 mm - 1.8 in
Width: 40.6 mm - 1.6 in

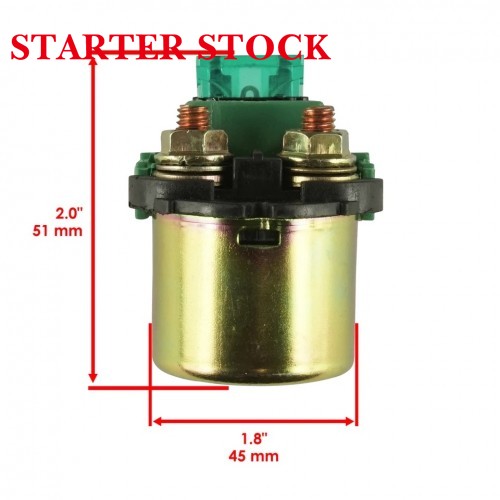

Height: 51 mm - 2 in

OEM Part Number Cross Reference 35850-MB0-007, 35850-MB0-405, 35850-MK3-671 Rated Voltage 12V DC Continuous Contact Current Rating 30A Peak Inrush Current Rating 80A Terminal Configuration 4-pin (2 x 6mm power terminals, 2 x 4mm signal terminals) Housing Material Flame-retardant ABS, zinc-plated steel mounting base Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Mounting Hole Diameter 6.5mm / 0.26 in Ingress Protection Rating IP65 (dust-tight, low-pressure water spray resistant) Coil Resistance 15Ω ±10% at 20°C (68°F) Product Weight 62g / 2.19 oz Service Life Minimum 100,000 operation cycles at rated load Fit Type Direct OEM replacement, no modification required
