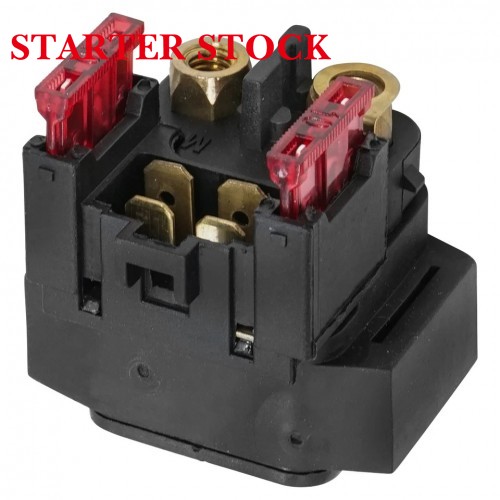

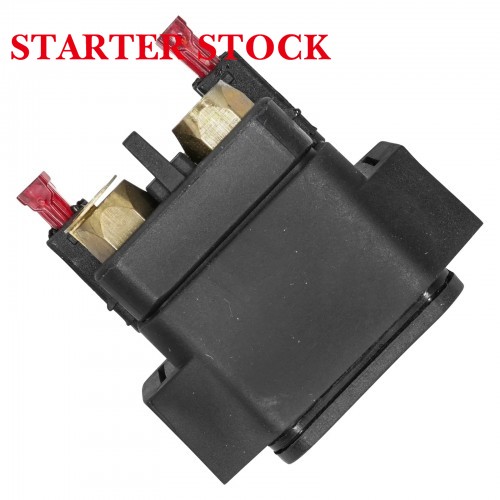

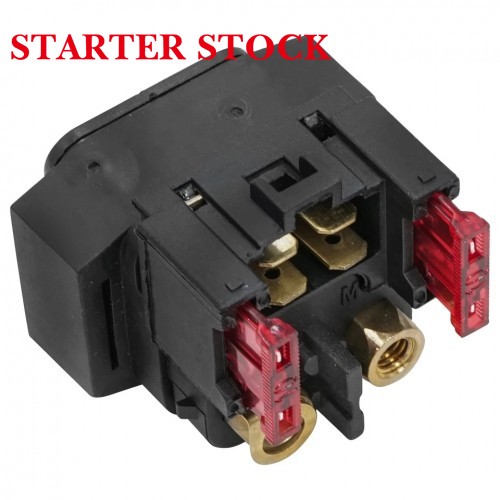

Motorcycle Starter Relay Solenoid for Yamaha WR450F 2003-2011
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Yamaha Models:
WR450F 2003-2011

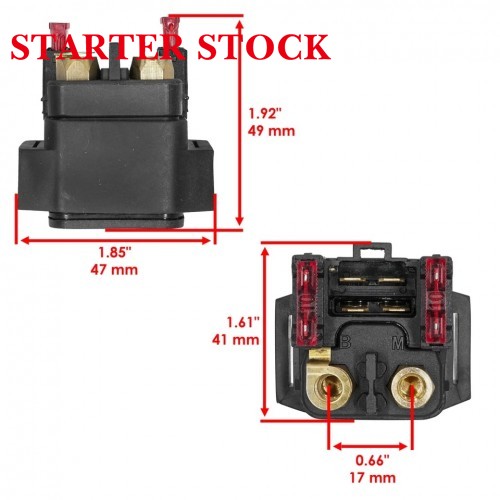

Product Type Starter Relay Solenoid Rated Operating Voltage 12V DC Housing Material Heat-resistant flame-retardant ABS Terminal Material High-conductivity pure copper Waterproof Rating IP65 Operating Temperature Range -40°C to +125°C Replacement OEM Part Number 5TJ-81940-00-00 Mounting Hole Diameter 6mm Mounting Hole Center Spacing 42mm Maximum Current Load 150A Contact Resistance ≤5mΩ Package Inclusion 1x starter relay solenoid, 2x stainless steel mounting screws
