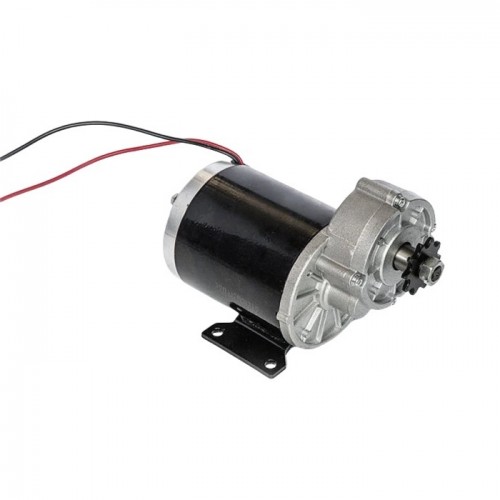

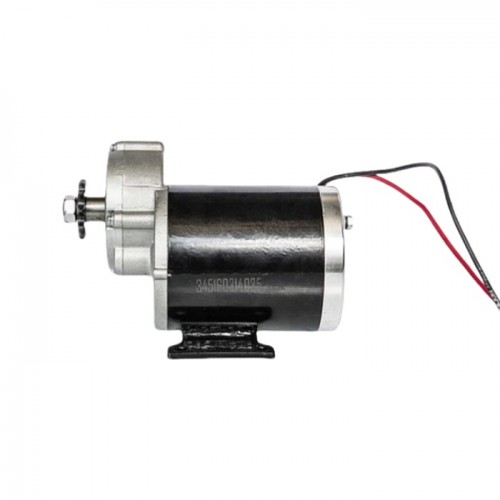

Model: MY1020Z/ZD108AZ1
Rated power / W 600
Rated voltage / V 48
Unloading current / A ≤2.0
Unloading speed / RPM 3600
Rated torque / N・m 1.85
Rated speed / RPM 3100
Rated current / A ≤16
Rated efficiency /% ≥78
Operating system / min S2-40 series
Insulation level F
Protection class IP40
Reduction ratio    6.67:1
Motor Length L/mm 134
