For Honda Models:
Pioneer 1000 SXS1000 2016-2023

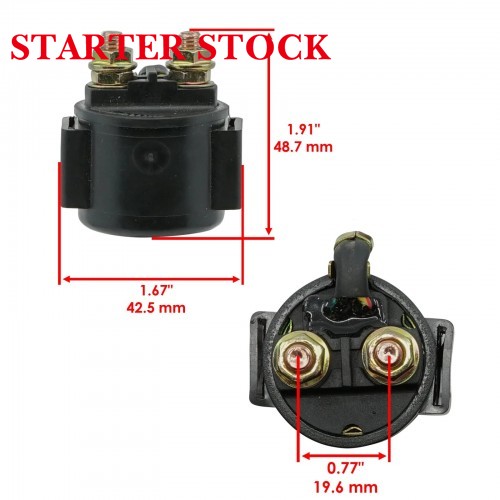

Height : 48.7mm | 1.91"
Length : 42.5mm | 1.67"

Width 36.2mm | 1.43 in Voltage Rating 12V DC Contact Material Copper Alloy with Silver Plated Contacts Terminal Count 4 (2 large power terminals, 2 small signal terminals) Mounting Hole Diameter 6.5mm | 0.26 in Operating Temperature Range -40°C to 125°C | -40°F to 257°F Ingress Protection Rating IP65 (Dust-tight, resistant to low-pressure water jets) Coil Resistance 15 Ohms ± 10% OEM Replacement Part Number 35850-HL4-A01, 35850-HL4-A02 Housing Material Reinforced PA66 Nylon, high impact and corrosion resistant Maximum Current Load 150A Continuous, 300A Peak for 5 Seconds
