For KTM Models:
520 EXC RACING 2000-2002
520 EXC-G RACING 2002
520 MXC RACING 2001-2002
520 SX RACING 2000

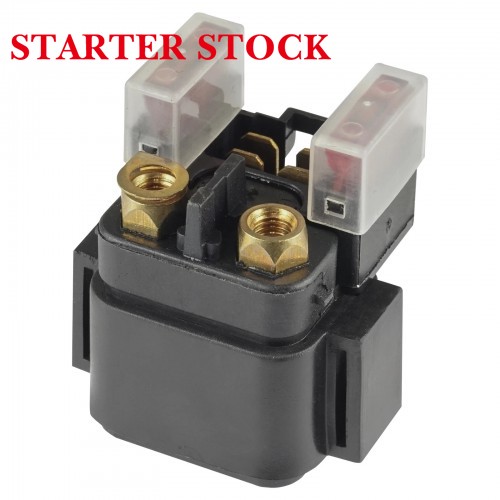

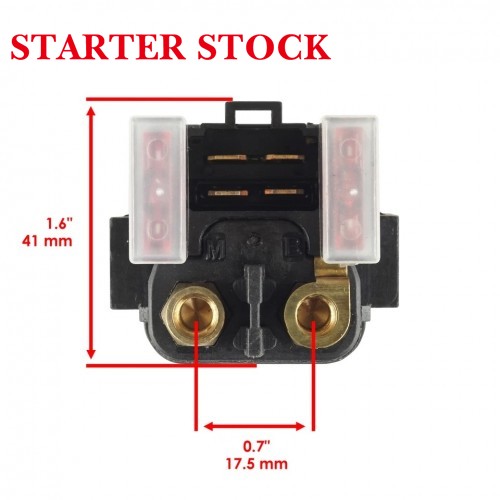

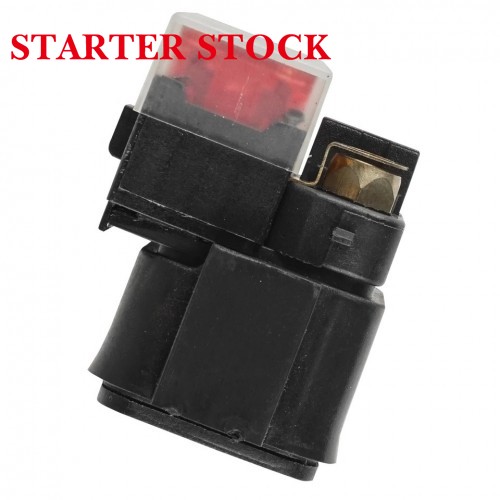

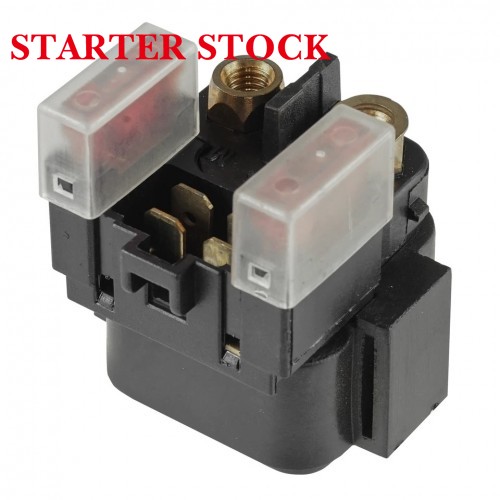

Product Type Starter Relay Solenoid Voltage Rating 12V DC Terminal Configuration 4-Pin Male Spade Terminal Mounting Hole Diameter 6mm Housing Material Reinforced ABS with pure copper internal conductive contacts Ingress Protection Rating IP65 water and dust resistant Operating Temperature Range -40℃ to 125℃ Coil Static Resistance 18Ω ± 2Ω Continuous Current Rating 30A Peak Inrush Current Rating 80A Replacement OEM Part Number 58411058000 Installation Type Direct plug-and-play, no modification required Service Life 100,000+ operation cycles Core Material High-permeability soft iron core Wire Gauge Compatibility Fits 12AWG to 16AWG starter system wiring Weight 95g
