For Suzuki Models:
LT-A400F KINGQUAD 400 AS 4x4 2008-2010

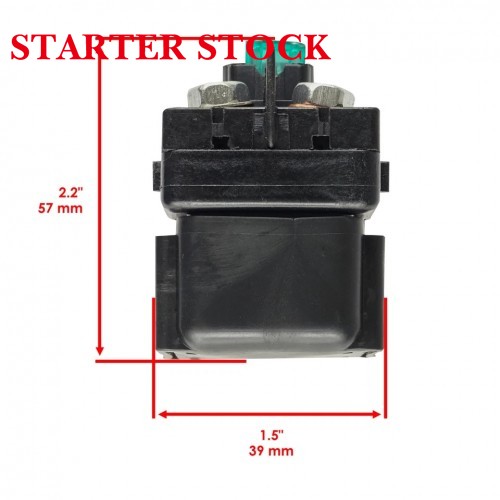

Part Type Starter Solenoid Relay OEM Interchange Part Number 31800-38G10, 31800-38G11 Rated Voltage 12V DC Terminal Configuration 4 terminals (2 large power terminals, 2 small signal terminals) Mounting Type Direct bolt-on, no modification required Housing Material Flame-retardant high-temperature ABS + tinned copper conductive cores Ingress Protection Rating IP64, dustproof and splash resistant Operating Temperature Range -40°C to 85°C (-40°F to 185°F) Coil Resistance 15-20 Ohms at 25°C (77°F) Maximum Current Capacity 150A continuous, 300A peak for 5 seconds Warranty Period 12 months from date of purchase Fitment Note Fits only carbureted trims of specified model years, excludes EFI variants Mounting Hole Diameter 6mm (0.24 inch)
