Starter Solenoid Relay For Honda CRF450RX 2017-2023
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Honda Models:
CRF450RX 2017-2023

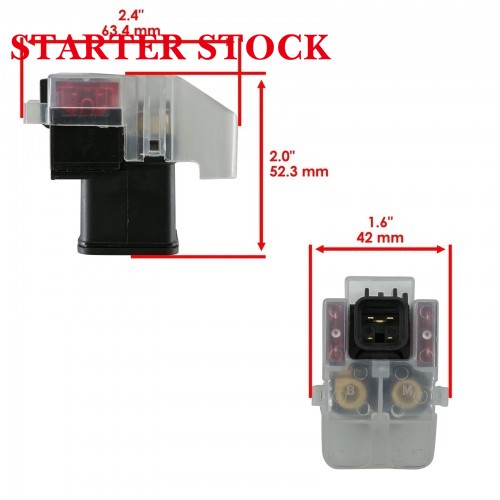

Width: 1.6" | 42.0 mm
Length: 2.4" | 63.4 mm
Height : 2.0" | 52.3 mm
Voltage Rating 12V DC Terminal Configuration 4-pin male copper terminal Coil Resistance 3.5 ± 0.2 Ohms Rated Continuous Current 80A Peak Current Capacity 150A Housing Material High-temperature reinforced flame-retardant ABS Contact Material Silver-plated copper alloy Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Mounting Hole Diameter 6.5 mm / 0.26 in OEM Interchange Part Number 35850-MKE-A71 Ingress Protection Rating IP67 water and dust resistant
