12V Starter Relay Solenoid for Yamaha FJR1300AE 2007
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Compatible with Yamaha Models:
FJR1300AE 2007

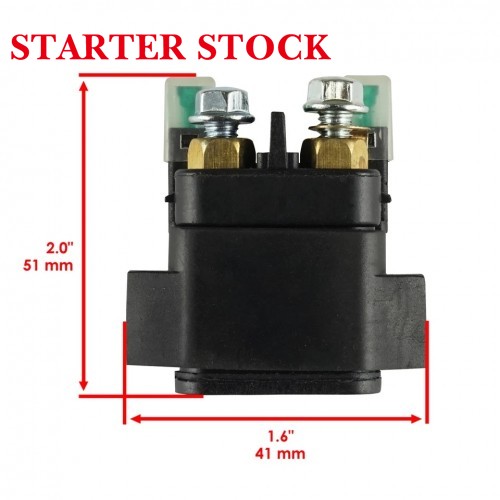

Length: 41 mm - 1.6 in
Height: 51 mm - 2.0 in
Voltage Rating 12V DC Coil Resistance 3.2 ± 0.3 Ω Peak Current Capacity 150A Continuous Current Capacity 80A Mounting Hole Diameter 6 mm / 0.24 in Terminal Configuration 4-pin copper spade terminal Housing Material Reinforced flame-retardant ABS plastic Contact Material Silver-plated high-conductivity copper Operating Temperature Range -40°C to 125°C / -40°F to 257°F IP Rating IP65 dust and water resistant Weight 58 g / 2.05 oz Connector Gender Male
