Compatible with Kawasaki Models:
BN125 Eliminator 125 2001-2009

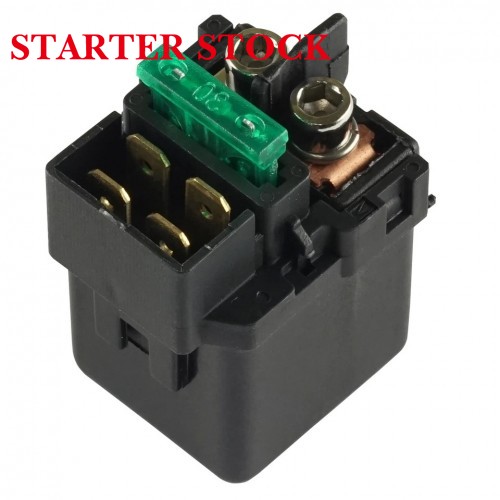

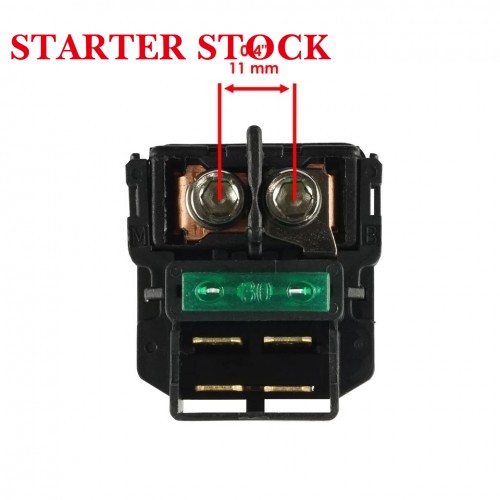

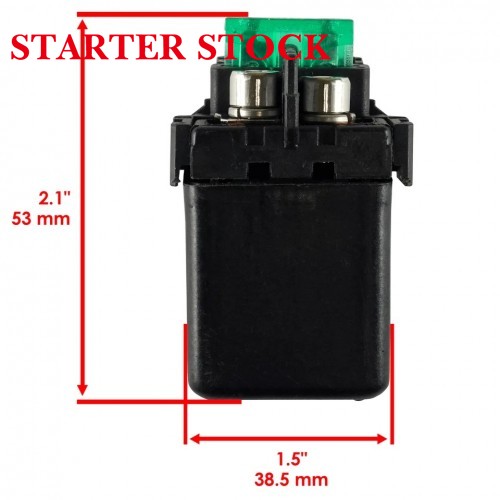

Product Type Starter Solenoid Relay OEM Part Cross Reference 27010-1317, 27010-0788, 27010-1217 Rated Input Voltage 12V DC Terminal Layout 4-Pin (2 x M6 power terminals, 2 x 6.3mm signal spade terminals) Mounting Hole Diameter 6mm (0.24 in) Mounting Hole Center Spacing 35mm (1.38 in) Housing Construction Material Flame-retardant high temperature resistant ABS plastic Internal Contact Material Silver-plated pure copper Maximum Continuous Current Rating 150A Waterproof Protection Grade IP65 Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Included Accessories 2 x stainless steel mounting screws Service Life Minimum 100,000 switching cycles Replacement Type Direct fit, no modification required
