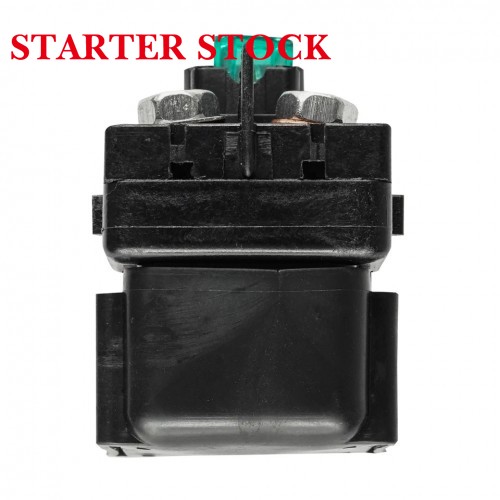

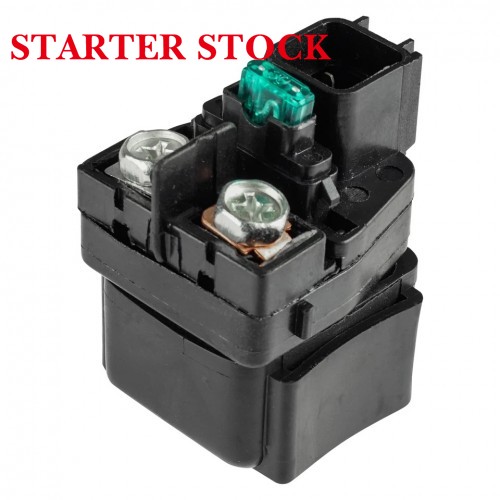

Starter Solenoid Relay for Suzuki VZR1800 BOULEVARD M109R 2006-2014
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Suzuki Models:
VZR1800 BOULEVARD M109R 2006-2014

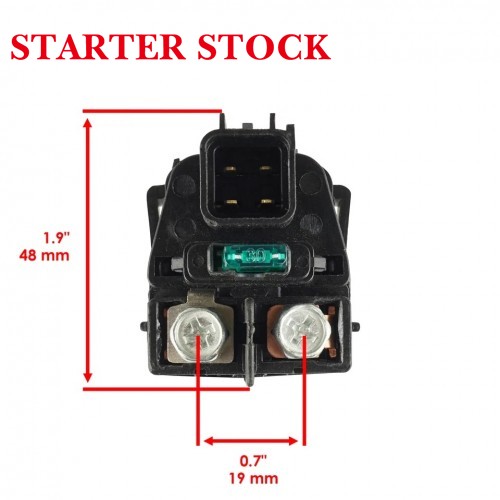

Product Type Starter Solenoid Relay Housing Construction Reinforced heat-resistant ABS housing with pure copper internal conductive contacts Rated Voltage 12V DC Maximum Load Current 180A Terminal Configuration 4-pin male direct plug-in connector Operating Temperature Range -40°F to 257°F (-40°C to 125°C) Waterproof Rating IP67 dust and water resistant OEM Interchange Part Number 31800-48G00, 31800-48G10 Coil Resistance 12Ω ± 10% Mounting Hole Diameter 6mm Service Life ≥ 50,000 operation cycles
