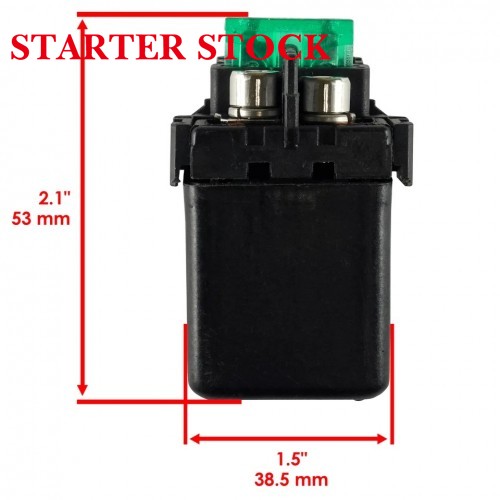

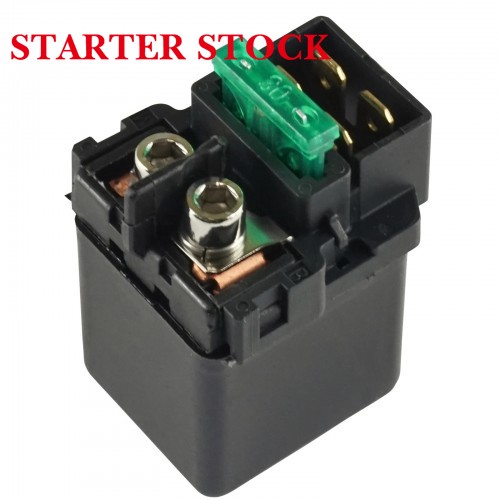

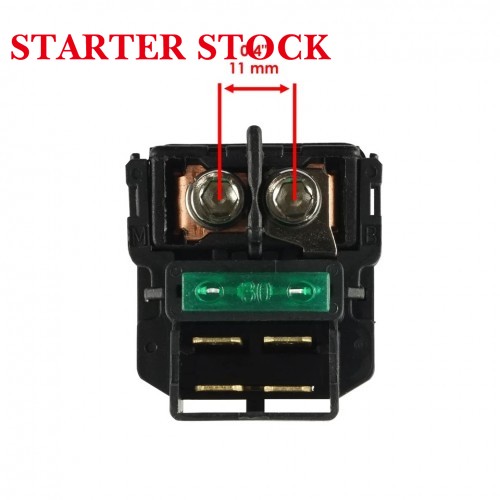

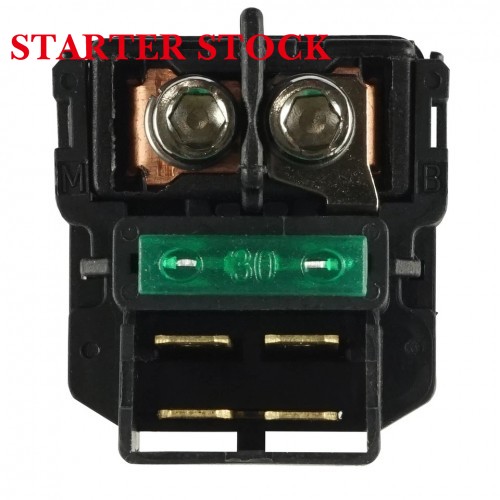

Starter Relay for Honda Shadow Spirit VT750DC 2001-2003/2005-2006
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Compatible with Honda Models:
Shadow Spirit VT750DC 2001-2003/2005-2006
Product Type Starter Solenoid Relay OEM Part Number Reference 35850-MR5-007 Rated Operating Voltage 12V DC Mounting Hole Center Spacing 50 mm / 1.97 inch Terminal Count 4 (2 high-current terminals, 2 trigger terminals) Housing Material Flame-retardant ABS plastic Internal Contact Material High-conductivity pure copper Waterproof Protection Grade IP65 Operating Temperature Range -40°C to 125°C / -40°F to 257°F Net Weight 120 g / 4.23 oz Installation Type Direct drop-in replacement, no modification required Maximum Continuous Current Load 150A Corrosion Resistance Salt spray tested for 48 hours with no rust or performance degradation
