For Honda Models:
CRF450R 2018-2023

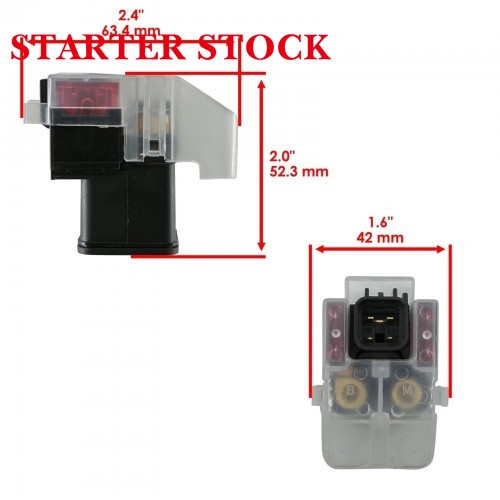

Width: 1.6" | 42.0 mm
Length: 2.4" | 63.4 mm
Height : 2.0" | 52.3 mm

Rated Voltage 12V DC Mounting Hole Diameter 6.5 mm | 0.26 inch Coil Resistance 18 ohms ± 10% Terminal Material High-purity corrosion-resistant copper Housing Material Reinforced flame-retardant ABS plastic IP Protection Rating IP65 dustproof and water-resistant Maximum Current Load 80A continuous, 150A peak Compatible OE Part Number 35850-MKE-A71 Operating Temperature Range -40°C to 125°C | -40°F to 257°F Contact Resistance ≤ 10 milliohms Service Life Cycles ≥ 10,000 actuation cycles Seal Type Integrated rubber gasket seal
