For Yamaha Models:
G11 1997-2001

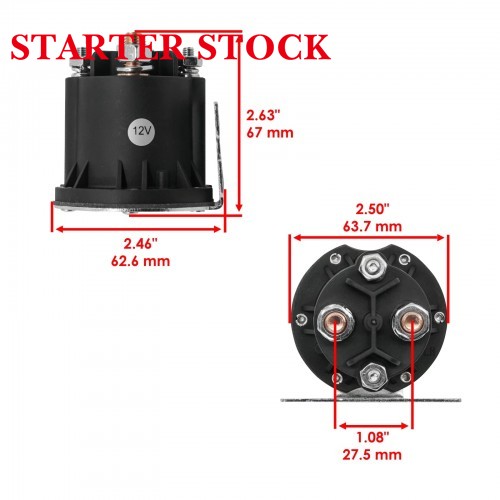

Length : 63.7mm | 2.50 "
Height : 67mm | 2.63 "

Voltage Rating 12V DC Terminal Configuration 4 Pin Straight Copper Terminals Mounting Hole Diameter 8mm | 0.31in Coil Resistance 2.8 Ohms ± 10% Current Capacity 150A Continuous, 800A Inrush Peak Housing Material Heat-Resistant Reinforced ABS Plastic Contact Core Material Silver-Plated High Conductivity Copper Waterproof Rating IP65 Dust & Water Resistant Operating Temperature Range -40°C to 125°C | -40°F to 257°F Replacement OEM Part Numbers 4KB-81940-00-00, 4KB-81940-01-00 Threaded Stud Size 6mm | 0.24in Insulation Strength 1000V AC for 1 Minute Service Life ≥ 100,000 Operation Cycles
