PRODUCT DETAILS

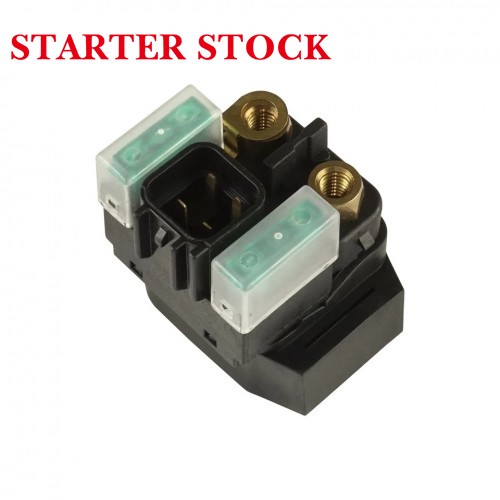

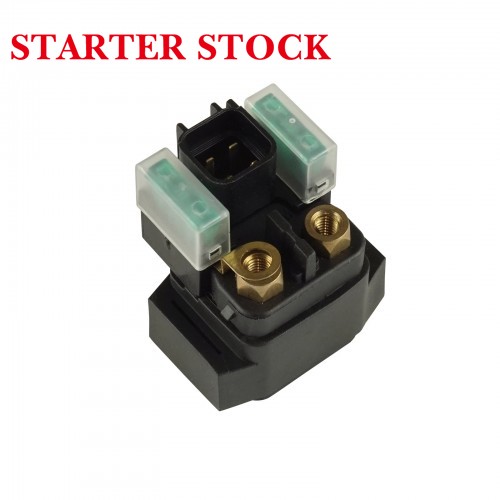

Starter Relay Solenoid for Suzuki VL1500 2013-2019

$12.78

1Piece Minimum order

Jinhua Xiaoxibian Technology Co., Ltd

  • Business type: ATV start motor

Chat

PRODUCT PARAMETERS

Type

Relay

Category

Automotive

Brand

Xiaoxibian

Compatible with Suzuki Models:
VL1500 2013-2019

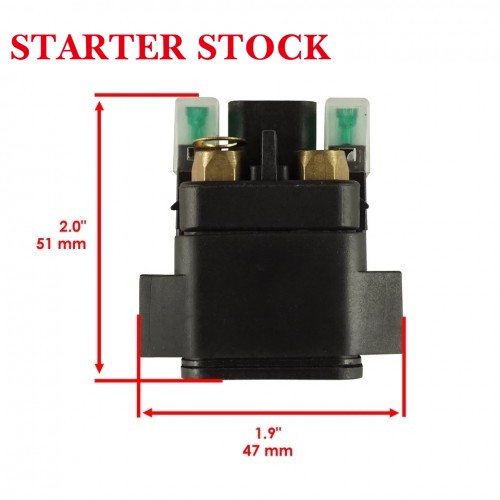

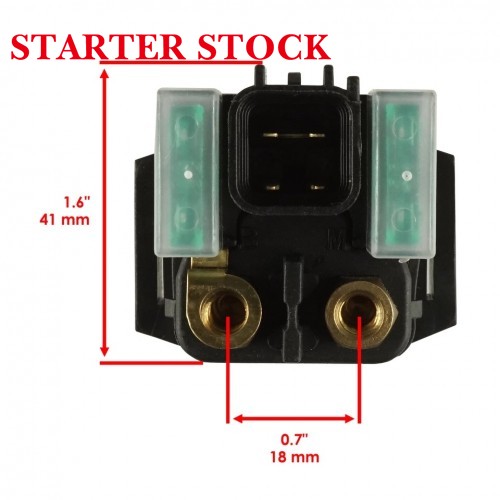

OEM Part Number Cross Reference 31800-10G00, 31800-10G01, 31800-41G00 Rated Voltage 12V DC Contact Material Silver-plated pure copper Housing Material Flame-retardant high-impact ABS plastic Waterproof Rating IP65 dustproof and weather-resistant Maximum Continuous Current Load 150A Number of Terminals 4 (2 large power terminals, 2 small signal terminals) Mounting Hole Center Pitch 62mm / 2.44in Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Net Weight 118g / 4.16oz Package Contents 1 x starter relay solenoid, 2 x stainless steel mounting screws Service Life ≥ 100,000 operation cycles
